GHY Series（45W-240W)

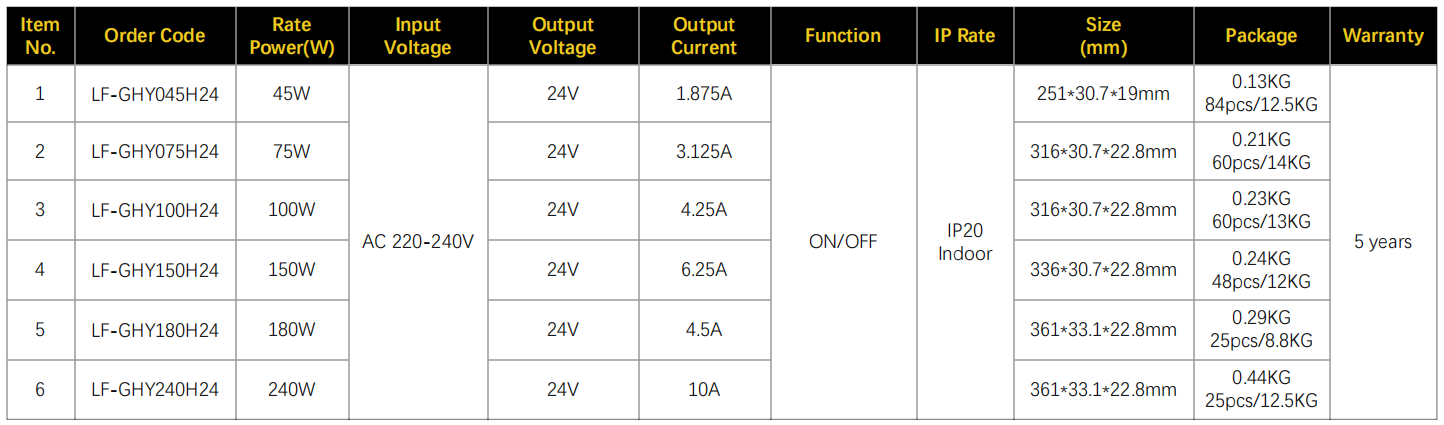

Technical Data ▼

FAQ ▼

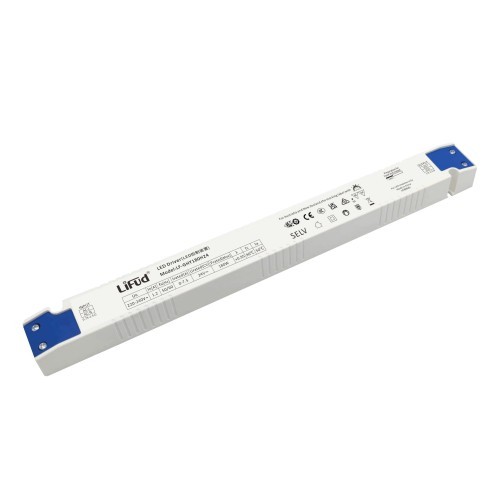

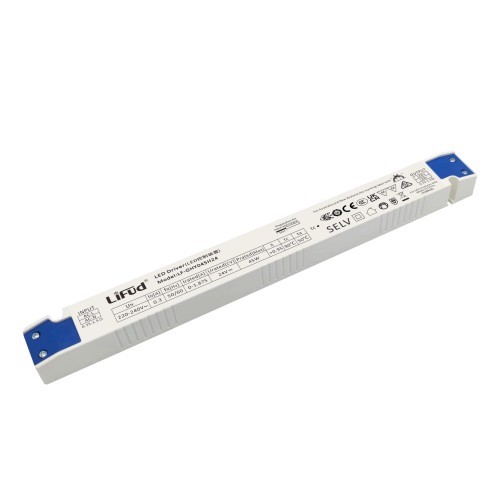

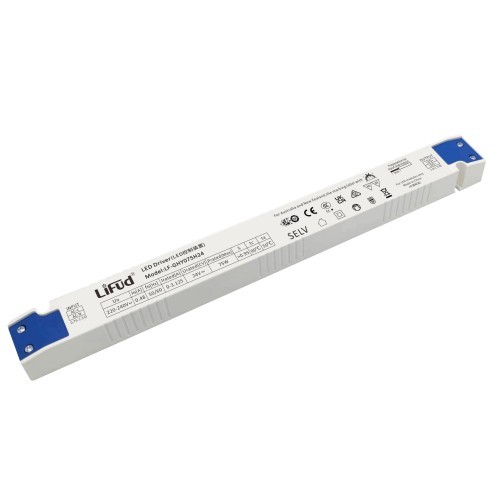

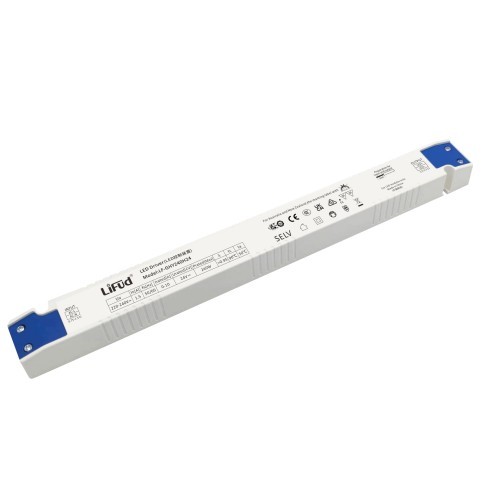

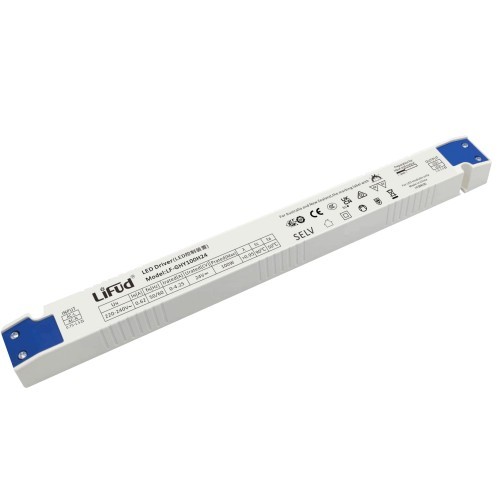

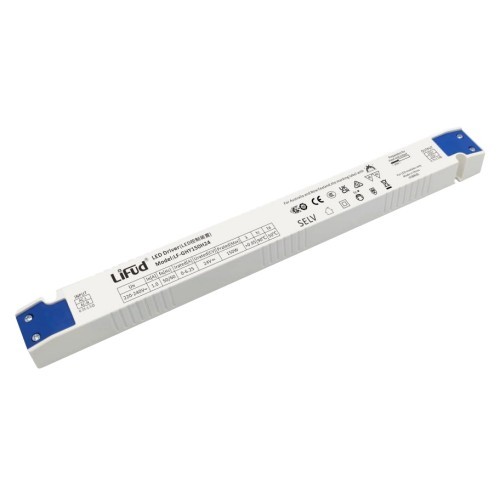

1. What is Lifud GHY series LED driver?

GHY is Lifud linear constant voltage LED driver, basic ON/OFF model with plastic housing.

It features full power output, converting AC to 24V DC for indoor low-voltage LED lighting.

2. What are the power range and input & output specs of GHY?

Power ranges from 45W to 240W. AC input 220-240V. Fixed 24V constant voltage output.

3. What is IP rating and application environment for Lifud GHY?

IP20 rated. Only for dry indoor use. Not suitable for outdoor wet or rainy environments.

With plastic housing, it must be externally mounted and cannot be built inside fixture cavity.

4. What are the core advantages and application fixtures of GHY?

It delivers true full rated power, the load can reach its nominal power.

It is cost-effective with competitive price.

Slim long shape, suitable for standard 24V ON/OFF LED strips and externally mounted 24V constant voltage linear lights.

5. Does GHY ON/OFF support dimming?

This basic ON/OFF model has no dimming function, only power on/off control. It comes with a 5-year warranty.
