GAT Triac（75W-150W)

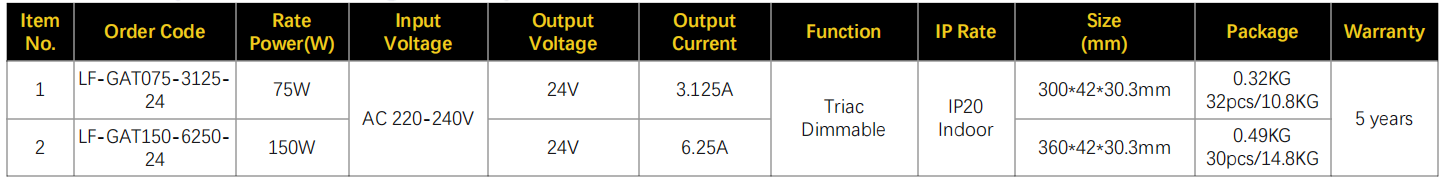

Technical Data ▼

FAQ ▼

1. What is Lifud GAT series LED driver?

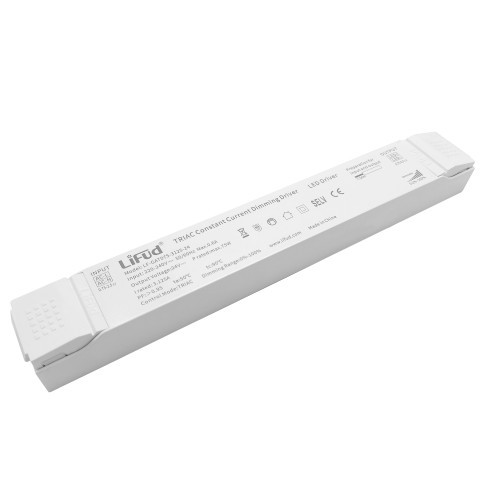

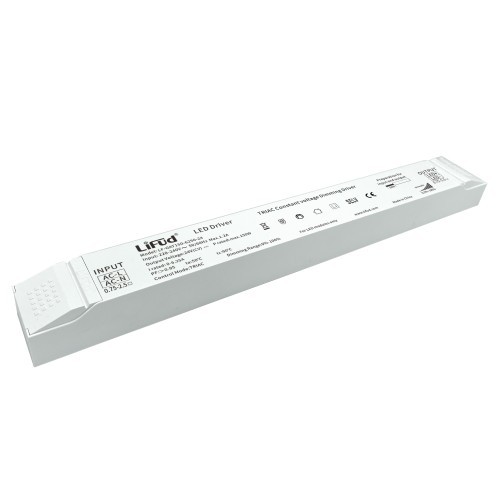

GAT is Lifud linear constant voltage LED driver with Triac dimming function.

It converts AC to 24V DC for indoor residential and renovation low-voltage lighting projects.

2. What are the power range and input & output specs of GAT?

Power ranges from 75W to 150W. AC input 220-240V. Fixed 24V constant voltage output.

3. What is IP rating and application environment for Lifud GAT?

IP20 rated. Only for dry indoor use. Not suitable for outdoor wet or rainy environments.

With plastic housing, it must be externally mounted and cannot be built inside fixture cavity.

4. What is the biggest advantage of GAT Triac dimming and its compatible fixtures?

Triac dimming requires no extra dimming signal cables.

It can work directly by replacing the existing wall Triac dimmer switch.

Slim long form factor, suitable for Triac dimmable 24V LED strips and externally mounted 24V constant voltage linear lights.

5. About GAT dimming requirement and warranty?

It adopts leading-edge phase-cut Triac dimming and requires a compatible wall Triac dimmer.

It comes with a 5-year warranty.
