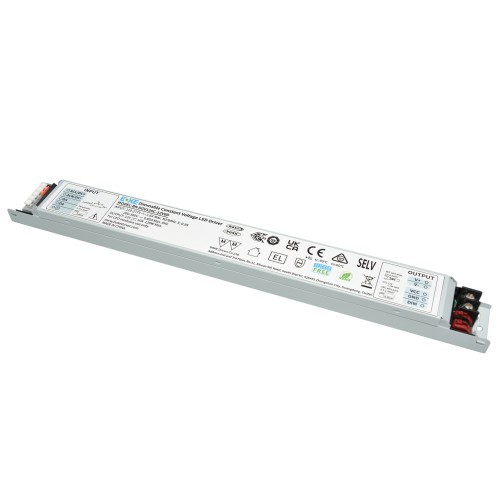

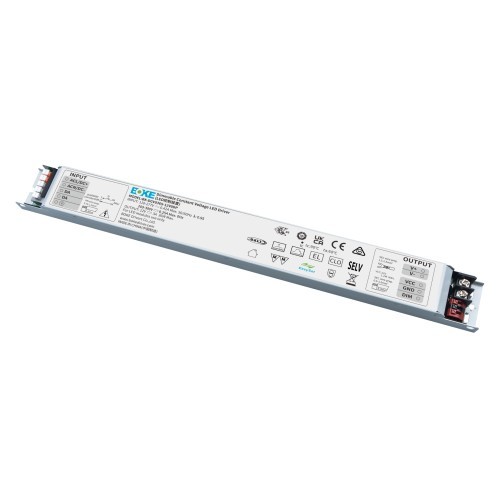

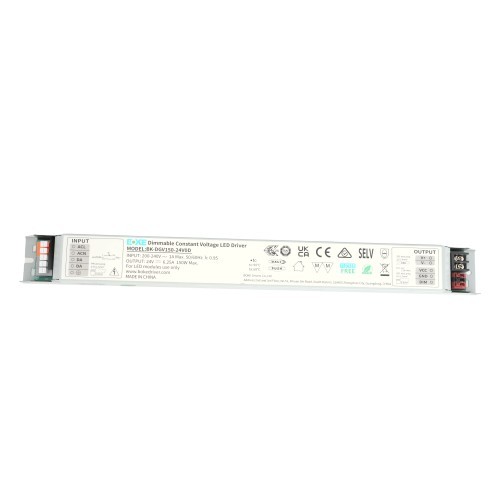

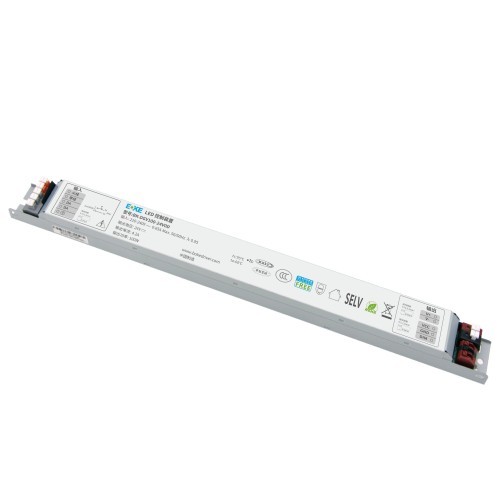

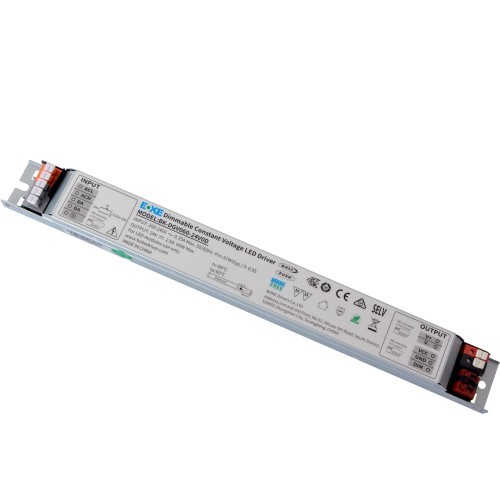

DGV DALI Series（36W-150W)

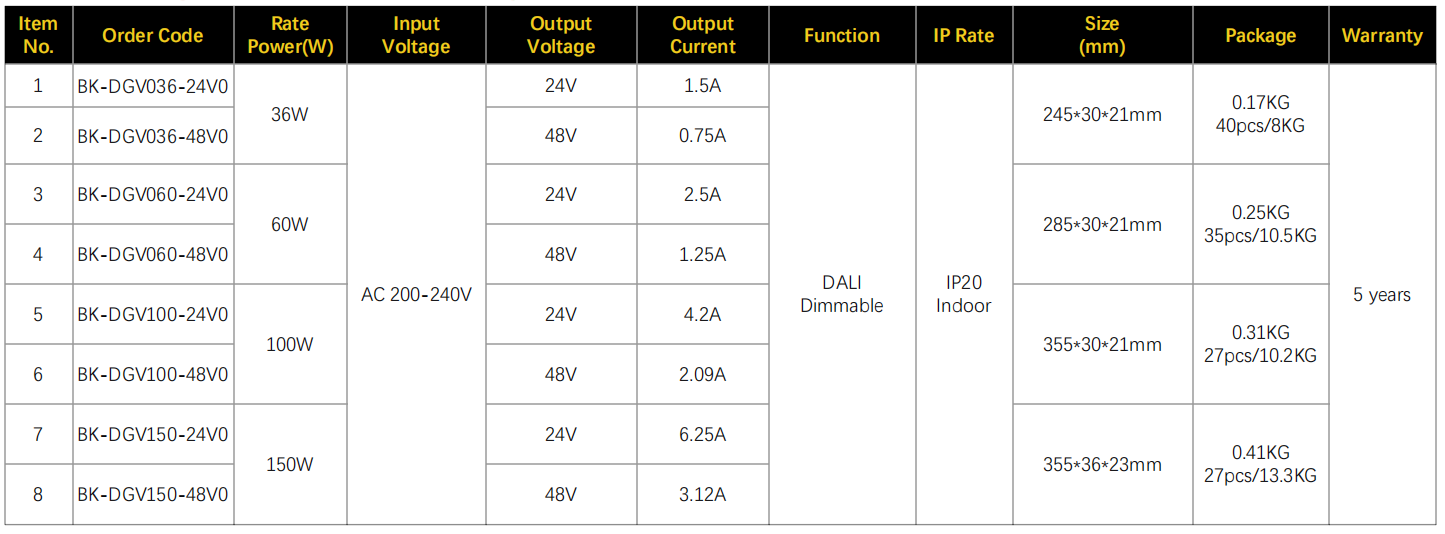

Technical Data ▼

FAQ ▼

1. What is BOKE DGV series LED driver?

DGV is BOKE linear constant voltage LED driver with standard DALI digital dimming function.

It converts AC to 24V/48V DC for indoor smart low-voltage lighting.

2. What are the power range and input & output specs of DGV?

Power ranges from 36W to 150W. AC input 200-240V.

Output options: 24V or 48V, constant voltage design.

3. What is IP rating and application environment for BOKE DGV?

IP20 rated. Only for dry indoor use. Not suitable for outdoor wet or rainy environments.

4. What is the core installation advantage of DGV?

It features compact size and supports built-in installation.

It can be embedded inside 24V or 48V constant voltage linear lights to realize built-in DALI dimming for linear lights.

It is also compatible with DALI dimmable LED strips.

5. About DGV dimming feature and warranty?

It supports standard DALI digital dimming, group control and individual single-light control with smooth and stable dimming.

It comes with a 5-year warranty.
