GDE 0-10V （75W-150W)

Technical Data ▼

FAQ ▼

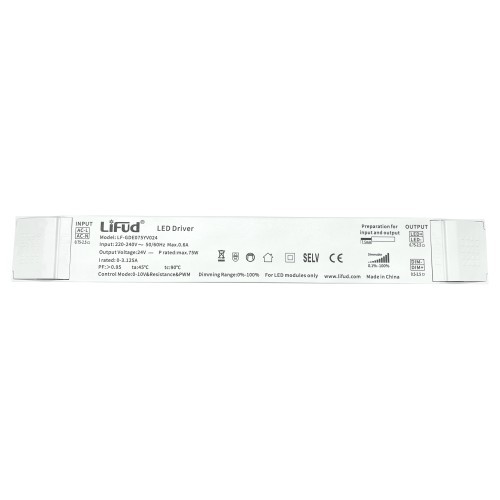

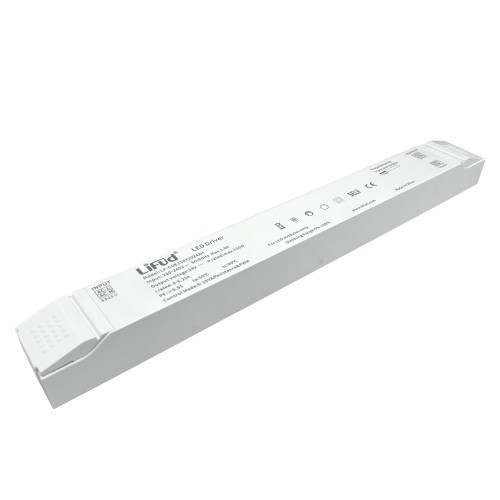

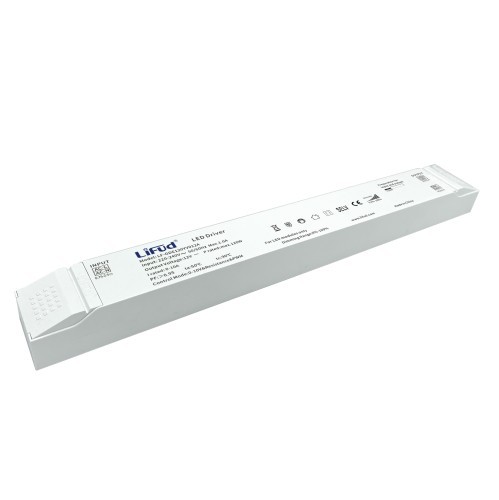

1. What is Lifud GDE series LED driver?

GDE is Lifud linear constant voltage LED driver with 0-10V analog dimming function.

It converts AC to 12V/24V DC for indoor smart low-voltage lighting projects.

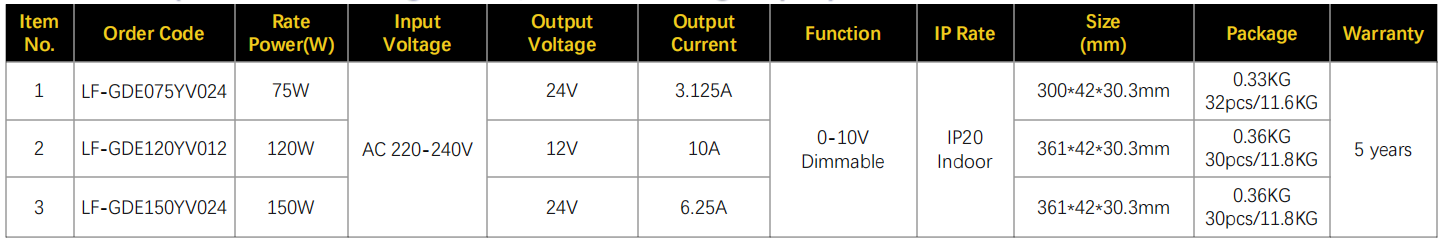

2. What are the power range and input & output specs of GDE?

Power ranges from 75W to 150W. AC input 220-240V.

Output options: 12V or 24V, constant voltage design.

3. What is IP rating and application environment for Lifud GDE?

IP20 rated. Only for dry indoor use.

Not suitable for outdoor wet or rainy environments.

With plastic housing, it must be externally mounted and cannot be built inside fixture cavity.

4. What are the core highlight and application fixtures of GDE?

Its biggest feature is 0.1% ultra-deep dimming, delivering smooth and low-flicker dimming performance.

It is cost-effective with slim long shape.

Very suitable for 0-10V dimmable LED strips and externally mounted 12V/24V constant voltage linear lights.

5. About GDE dimming requirement and warranty?

It adopts standard 0-10V analog dimming, and a matched 0-10V dimmer controller is required.

It comes with a 5-year warranty.
