Mini RF 2.4G Controller Kit - For SPI Strips

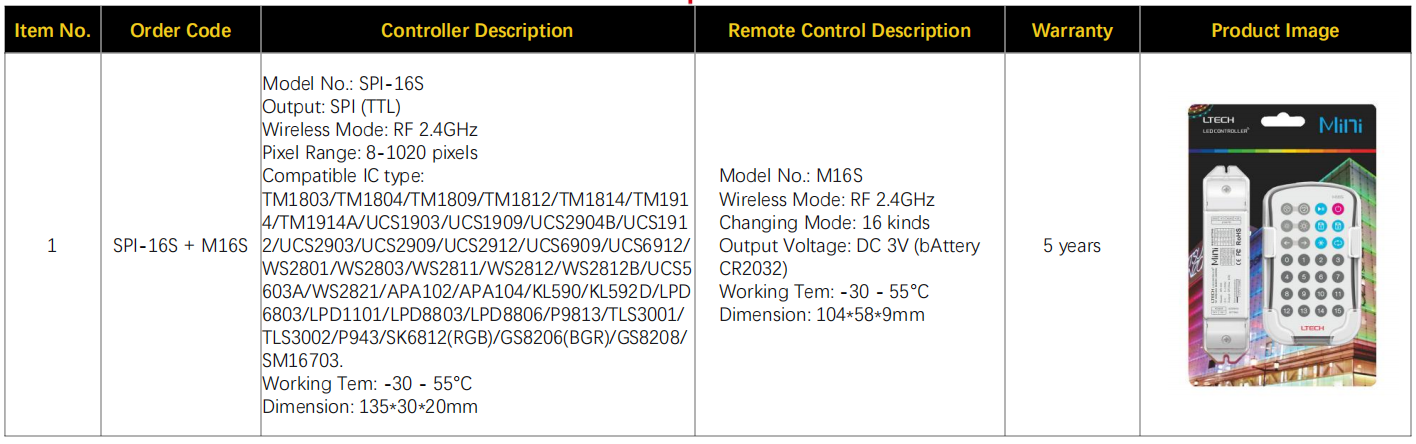

Technical Data ▼

FAQ ▼

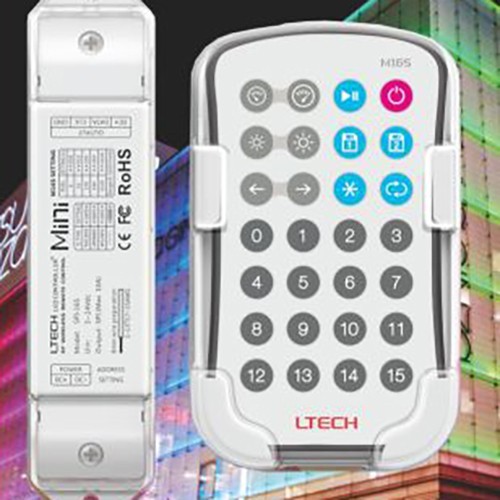

1. Is this LTECH Classic Mini RF 2.4G controller sold as a complete kit?

Yes, it comes as a full kit including SPI-16S controller and M16S remote, specially designed for SPI pixel LED strips.

2. What LED strips does this controller support?

It works with SPI(TTL) addressable pixel strips.

Compatible ICs include TM1803, WS2811, WS2812, APA102 and more.

Pixel range: 8–1020 pixels.

3. What wireless technology is used, and how many lighting dynamic modes does the remote have?

It uses RF 2.4G wireless. The remote has 16 built-in dynamic lighting changing modes.

4. What is the operating temperature and warranty?

Operating temperature: -30℃ ~ 55℃.

5-year warranty.

The remote is powered by CR2032 coin battery.

5. Can this controller be used for ordinary static single-color LED strips?

Not recommended.

This is dedicated SPI pixel controller for addressable running light strips.

It cannot work with normal static DIM/CCT/RGB strips.
