CV DMX512 Decoder

Technical Data ▼

FAQ ▼

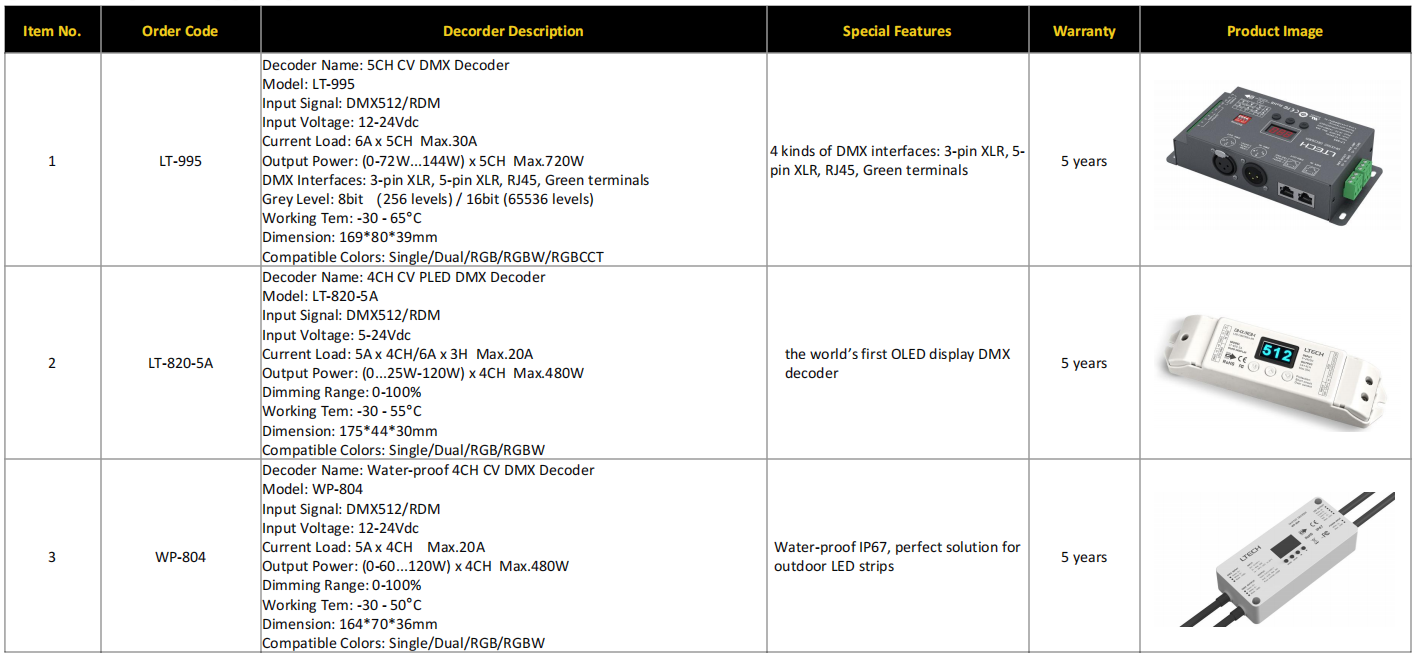

1. What models are available for this LTECH CV DMX512 decoder?

There are 3 models: LT-995, LT-820-5A and WP-804.

LT-995 is 5-channel, LT-820-5A is 4-channel with OLED display, WP-804 is IP67 waterproof 4-channel version.

2. What is the input voltage and which LED strips does it support?

Input voltage DC12–24V. It is constant voltage DMX decoder,

compatible with single color, dual color, RGB, RGBW and RGBCCT constant voltage LED strips.

3. What are the main differences among the three models?

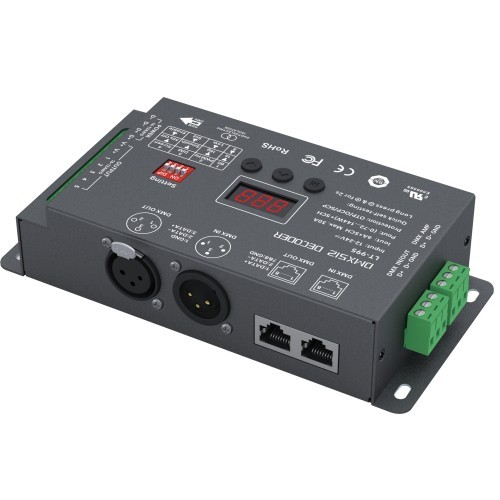

LT-995 is 5-channel with multiple DMX interfaces.

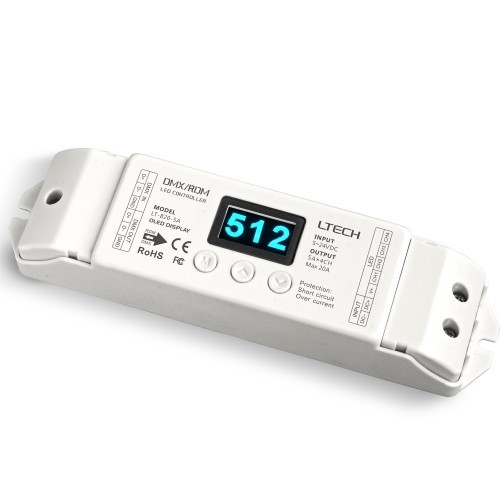

LT-820-5A comes with OLED screen for easy on-site setting.

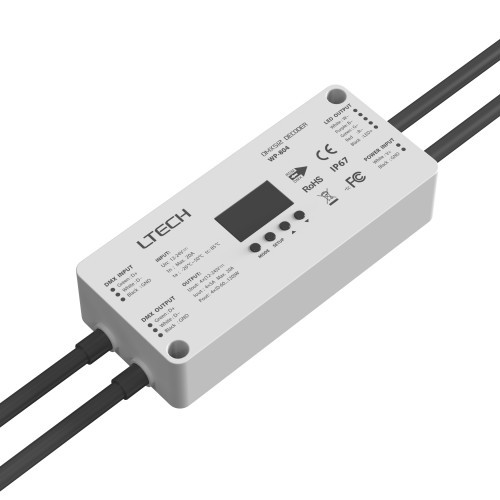

WP-804 has IP67 waterproof rating for outdoor projects.

4. What is the dimming range and warranty?

Dimming range 0–100%. It comes with 5-year warranty.

5. Can it connect directly to DMX console?

Yes. It receives DMX512/RDM signal.

LT-995 has multiple DMX interfaces, it can connect directly to DMX master controller for lighting engineering projects.
