CV Power Repeater

Technical Data ▼

FAQ ▼

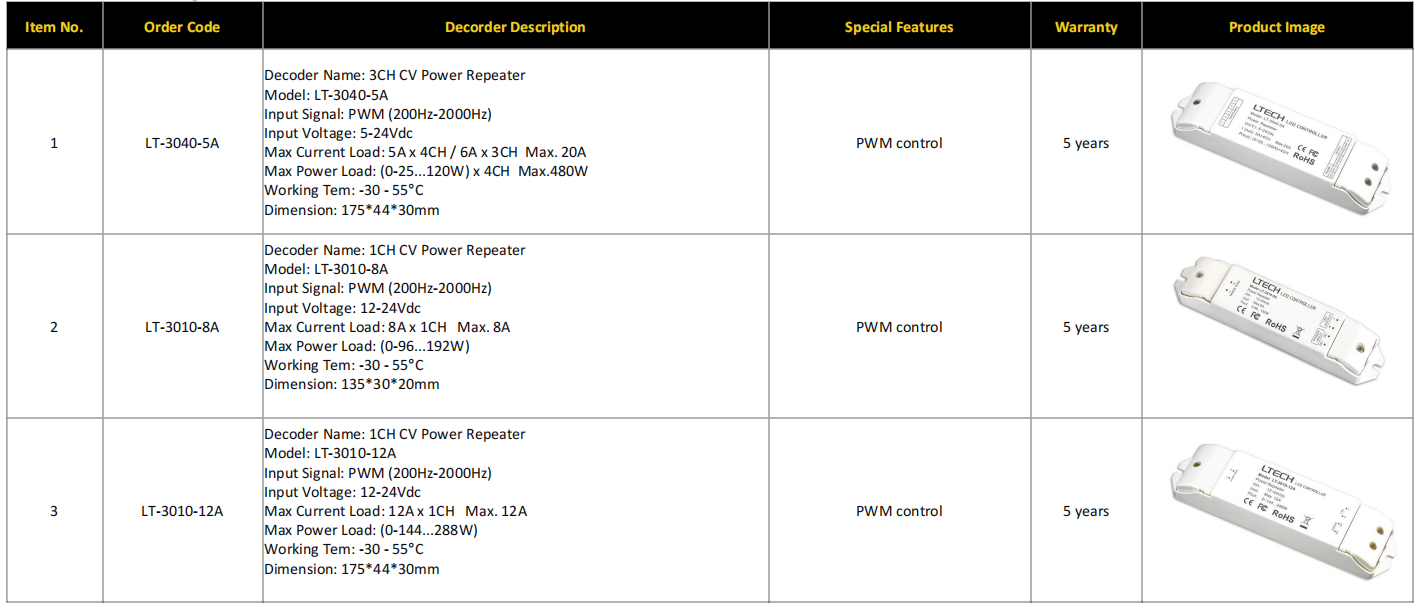

1. What models are available for this LTECH CV Power Repeater?

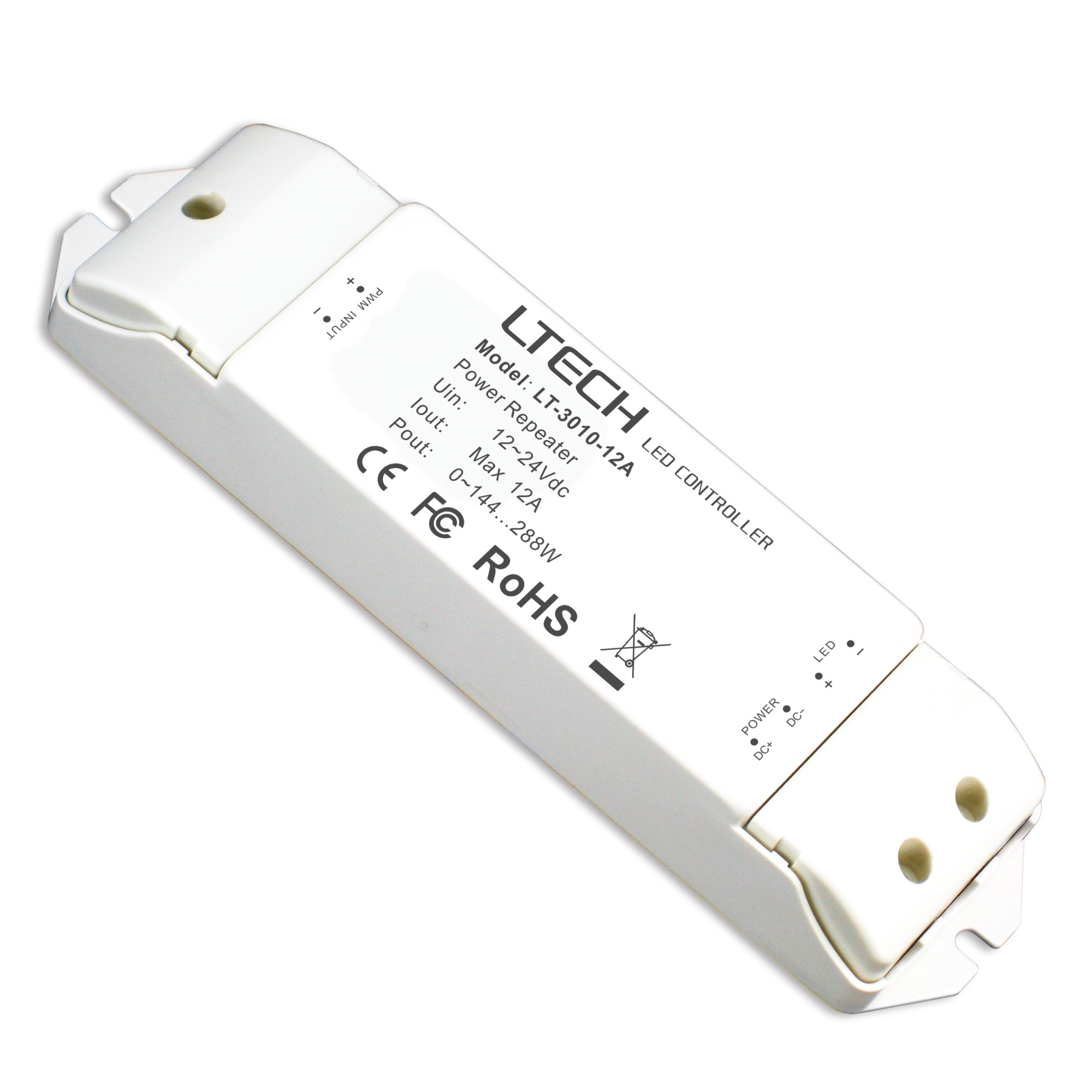

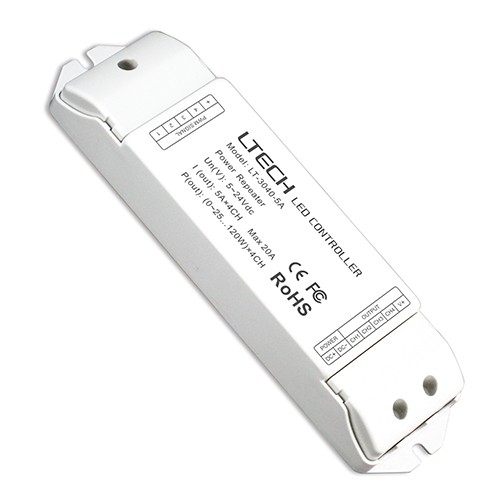

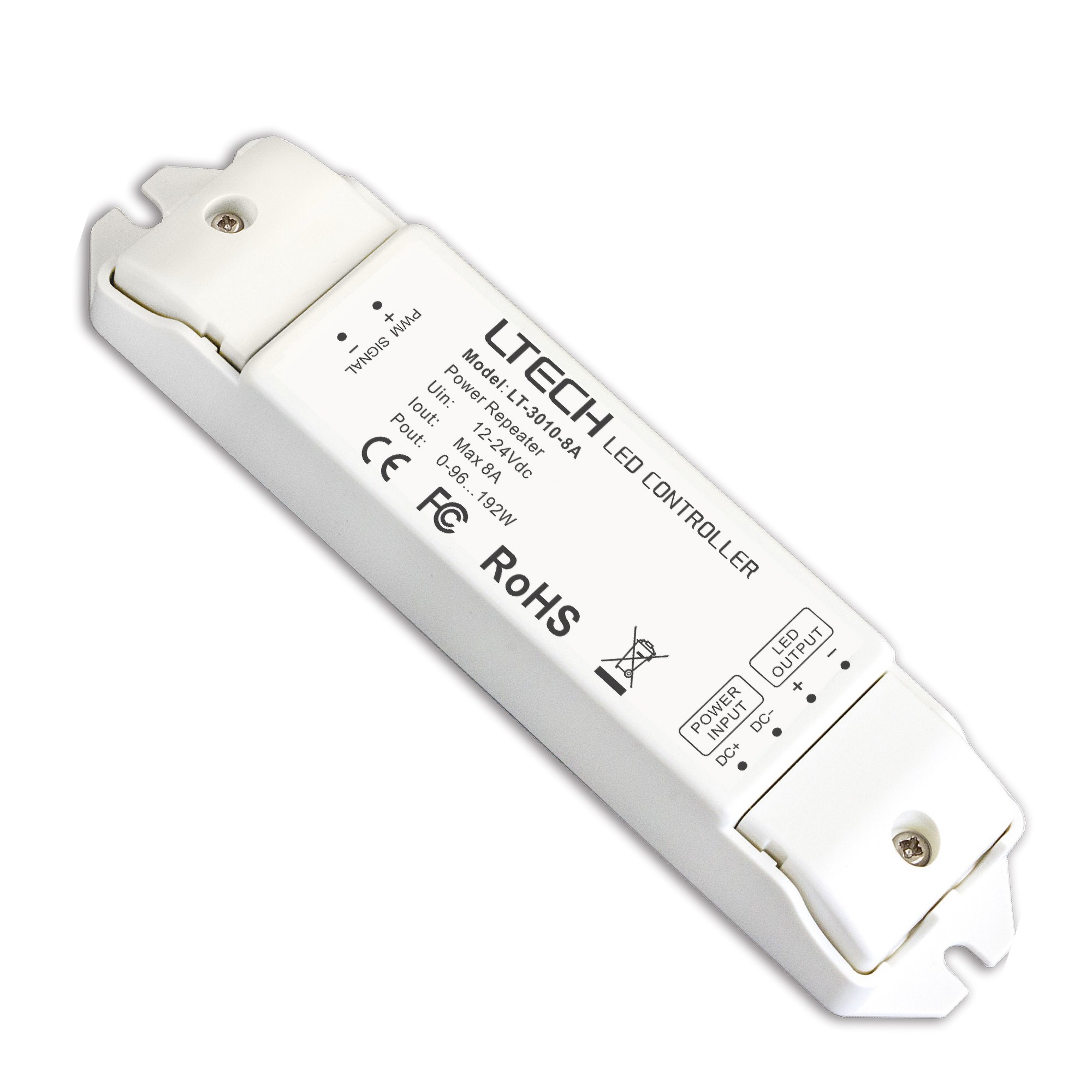

There are 3 models: LT-3040-5A (3CH), LT-3010-8A (1CH,8A), LT-3010-12A (1CH,12A).

2. What is the function of the power repeater?

It receives PWM dimming signal, amplifies signal and output power synchronously.

It extends the driving length of LED strips and solves voltage drop & insufficient power issues for long strips.

3. What is the input voltage and signal type?

Input signal: PWM (200Hz–2000Hz).

LT-3040-5A: DC5–24V.

LT-3010-8A & LT-3010-12A: DC12–24V.

4. What LED strips does it support?

It works with constant voltage static LED strips.

Including single color, CCT, RGB, RGBW, used together with dimming controllers.

5. What is the warranty and operating temperature?

5-year warranty.

Operating temperature: -30℃ ~ 55℃, with PWM dimming control.
