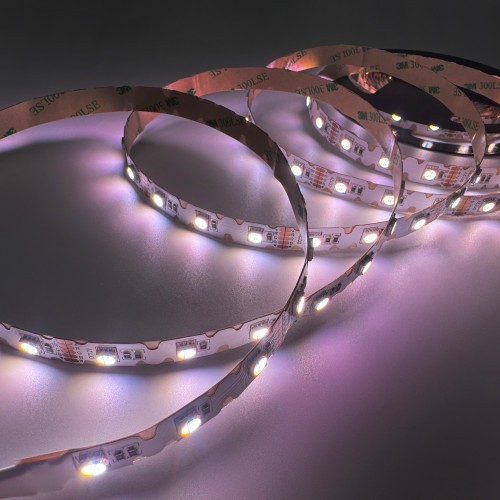

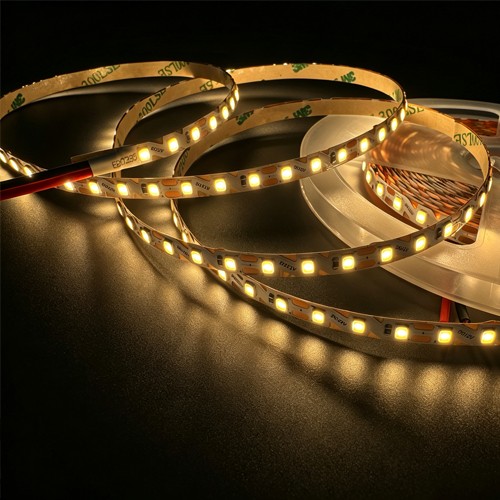

S-shape Bendable

Technical Data ▼

Product Feature ▼

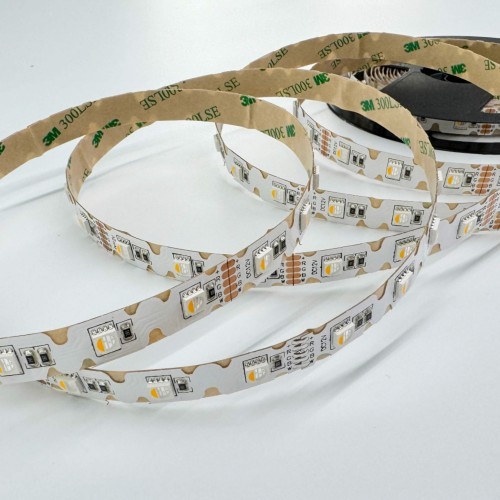

* Top quality & high brightness SMD2835/SMD5050 as light source

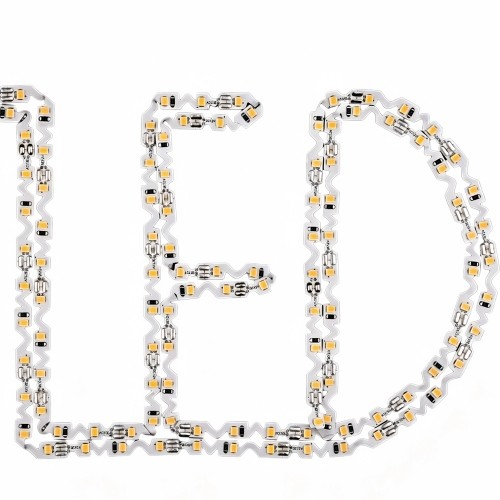

* S-shape bendable, can be bended into any shape

* High-conductivity double-layer pure copper FPCB

* Gold thread, pure copper bracket, high-quality material

* Original 3M tape, strong adhesive and long-lasting

* Low power consumption for energy saving

* IP65/IP67/IP68 Optional

* CE/ROHS/FCC approved

* 3 years warranty

IP Rate ▼

Optional Accessories ▼

Optional Accessories (Extra Charge, Not Included by Default)

1. Aluminum mounting profiles: Click link to buy https://www.arionlighting.com/en/Aluminum-Channel.html

2. LED power supplies: Click link to buy https://www.arionlighting.com/en/LED-Power-Supply.html

3. LED controllers: Click link to buy https://www.arionlighting.com/en/LED-Controller.html

4. Quick‑connect connectors: Click link to buy https://www.arionlighting.com/en/Fast-Connector.html

5. Cables & wires: Click link to buy https://www.arionlighting.com/en/Cable.html




Please contact our sales staff for professional selection advice if you have any questions.

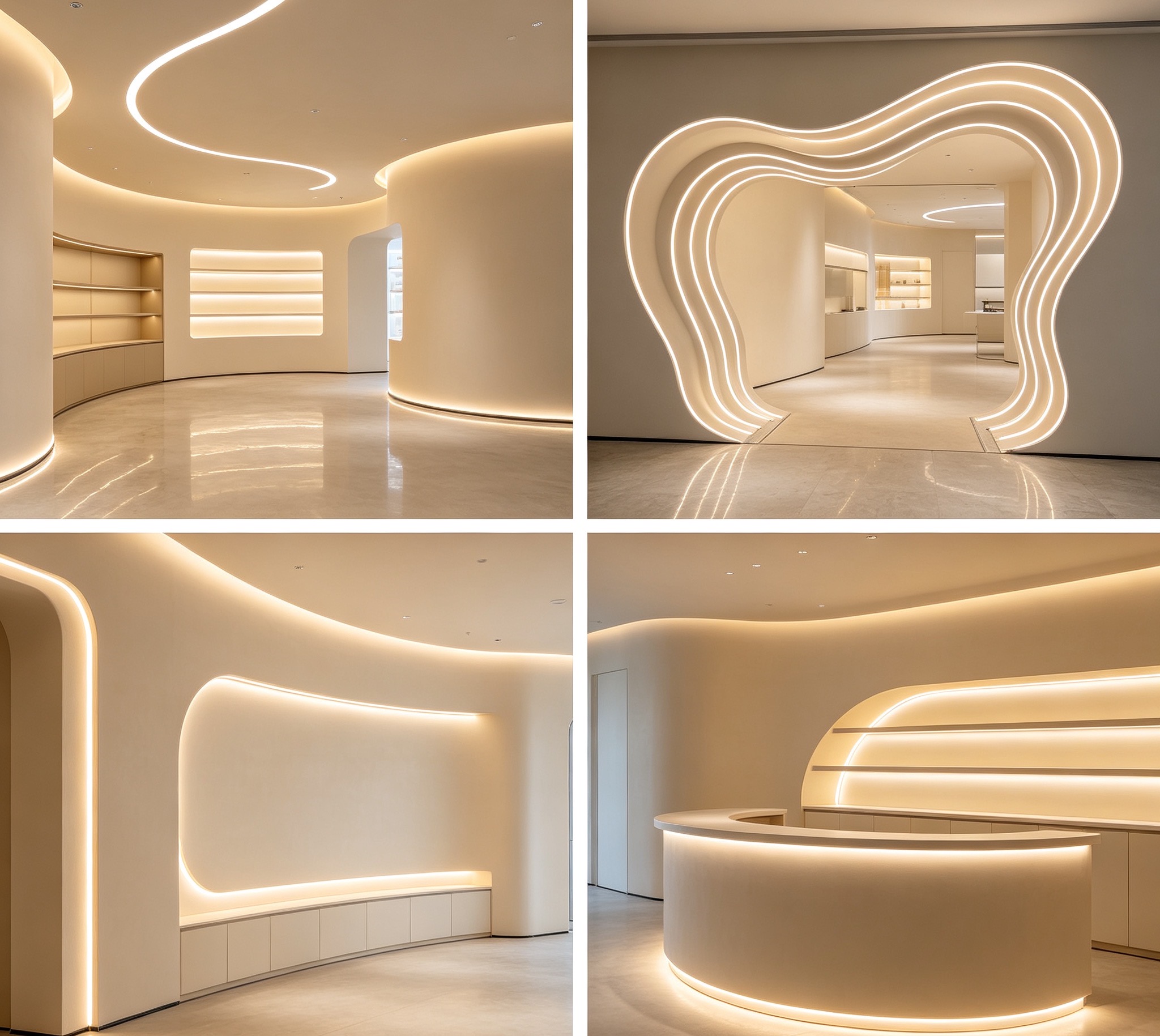

Applications ▼

Factory Display ▼

FAQ ▼

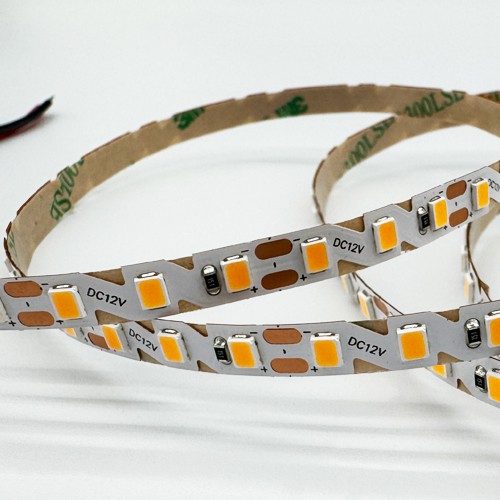

1. What is S-bend flexible LED strip?

It uses specially‑processed flexible PCB.

It supports horizontal S‑shaped side‑to‑side bending, not only vertical curving.

It can form wave and S‑curve shapes, ideal for signs, irregular outlines and decorative profiles.

2. Can I bend the S‑bend strip back and forth repeatedly?

It allows S‑shaped forming, yet repeated bending at the same spot is not recommended.

Frequent bending will damage PCB copper traces and cause open‑circuit dead LEDs.

Try not to reshape after final installation.

3. What is the minimum bending radius for S‑shaped bending?

Recommended minimum S‑bend radius is 30‑50mm.

Smaller radius brings higher risk of trace breakage. Use larger bending radius on site for better reliability.

4. Can S‑bend flexible strip be cut? What is the cutting unit?

Yes, cut strictly along printed cutting marks on PCB.

 Each cutting mark contains complete circuit. Random cutting will make partial LEDs non‑functional.

5. What is the difference between S‑bend strip and ordinary flexible strip?

Normal flexible strips only bend vertically for rolling. Side‑to‑side bending easily breaks copper traces.

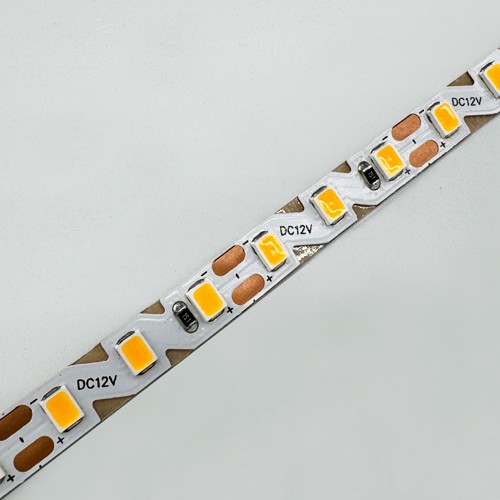

S‑bend strip adopts slotted PCB design to support horizontal S‑shaped bending for complex irregular shapes.

6. What precautions during installation?

Bend slowly without brute force. Mount on flat surface.

Do not pull or squeeze the strip especially on bending positions.

7. Can S‑bend strip work with aluminum profile?

Yes, use compatible special‑shaped aluminum profiles. Lay the strip following curve contour inside profile.

Never force squeeze the strip to prevent PCB stress cracking.

8. Does S‑bend flexible strip support dimming?

Standard PWM dimming is available with matching PWM power supply.

Voltage‑adjust dimming is not suggested, which may lead to uneven brightness or flicker.

9. What to notice for outdoor application?

Select strip with proper IP waterproof rating. Bending creates stress on waterproof coating.

All joints must be well sealed. Avoid long‑term immersion on bending areas.
