XLG Series（75W-320W)

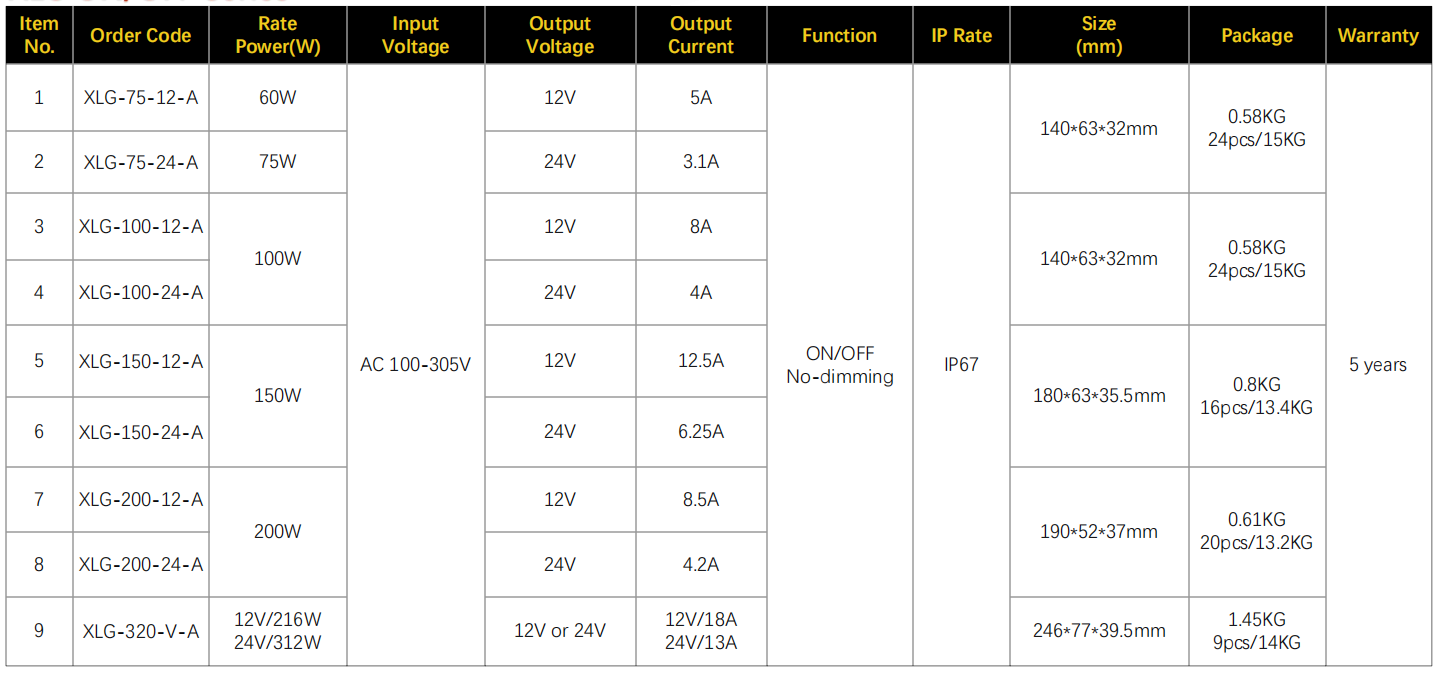

Technical Data ▼

FAQ ▼

1. What is Mean Well XLG series power supply?

XLG is Mean Well constant-power LED driver.

This is the basic ON/OFF version, converting AC to DC for outdoor LED strips and landscape lighting.

2. What are the main power range and input voltage of XLG?

Main power range 75W~320W, wide input 100~305VAC, output designed for LED lighting loads.

3. What is IP rating and application environment for XLG ON/OFF model?

IP67 dustproof and waterproof.

Suitable for indoor and outdoor exposed installation, rain splash resistant, NOT for permanent underwater submersion.

4. Can XLG ON/OFF run continuously at full load?

We recommend a 20% load margin. Continuous full-load operation is not advised to reduce heat and extend service life.

5. Does XLG ON/OFF support dimming?

This basic ON/OFF model has no dimming function, only power on/off control. The AB version features 3-in-1 dimming.
