Product Series：LRS-xx-xx
Input Voltage：AC 180-264V
Output Voltage: DC 5V/12V/24V/48V
Rate Power: 35W/50W/75W
Function： ON/OFF, non-dimming
Warranty: 3 years
IP Rate: IP20
Technical Data ▼
| Item No： | 1 | 2 | 3 | 4 |

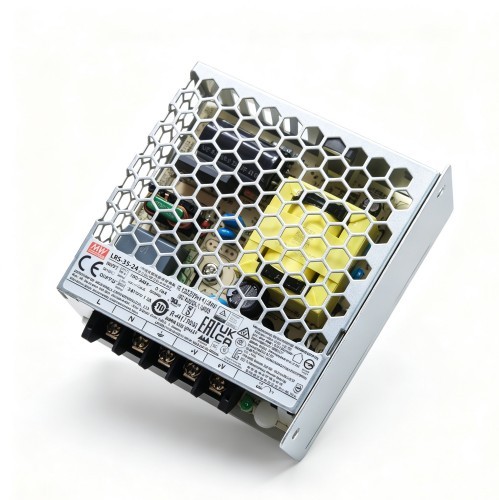

| Order Code： | LRS-35-5 | LRS-35-12 | LRS-35-24 | LRS-35-48 |
| Rate Power(W)： | 35W | 35W | 35W | 35W |
| Input Voltage： | AC 180-264V | AC 180-264V | AC 180-264V | AC 180-264V |
| Output Voltage： | 5V | 12V | 24V | 48V |
| Output Current： | 7A | 3A | 1.5A | 0.8A |
| Function： | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming |
| IP Rate： | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use |
| Size(mm)： | 99*82*30mm | 99*82*30mm | 99*82*30mm | 99*82*30mm |
| Package： | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG |
| Warranty： | 3 years | 3 years | 3 years | 3 years |
| Item No： | 5 | 6 | 7 | 8 |

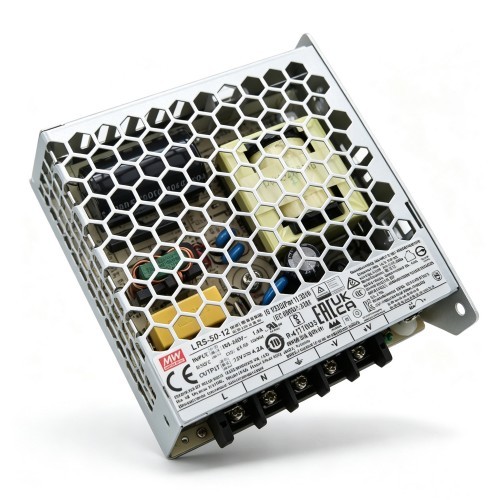

| Order Code： | LRS-50-5 | LRS-50-12 | LRS-50-24 | LRS-50-48 |
| Rate Power(W)： | 50W | 50W | 50W | 50W |
| Input Voltage： | AC 180-264V | AC 180-264V | AC 180-264V | AC 180-264V |
| Output Voltage： | 5V | 12V | 24V | 48V |
| Output Current： | 10A | 4.2A | 2.2A | 1.1A |
| Function： | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming |
| IP Rate： | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use |
| Size(mm)： | 99*82*30mm | 99*82*30mm | 99*82*30mm | 99*82*30mm |
| Package： | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG | 0.21KG 60pcs/14KG |
| Warranty： | 3 years | 3 years | 3 years | 3 years |
| Item No： | 9 | 10 | 11 | 12 |

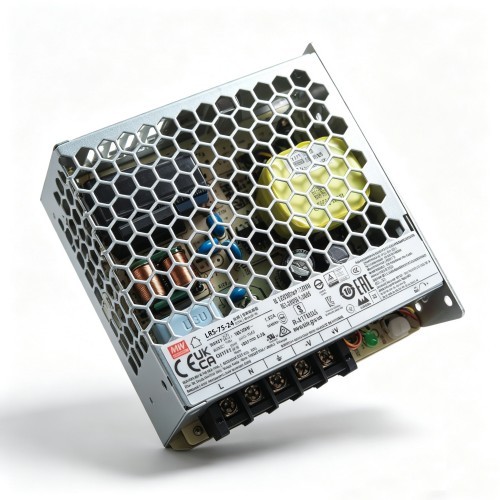

| Order Code： | LRS-75-5 | LRS-75-12 | LRS-75-24 | LRS-75-48 |
| Rate Power(W)： | 75W | 75W | 75W | 75W |
| Input Voltage： | AC 180-264V | AC 180-264V | AC 180-264V | AC 180-264V |
| Output Voltage： | 5V | 12V | 24V | 48V |
| Output Current： | 14A | 6A | 3.2A | 1.6A |
| Function： | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming | ON/OFF No-dimming |
| IP Rate： | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use | IP20 Indoor Use |
| Size(mm)： | 99*97*30mm | 99*97*30mm | 99*97*30mm | 99*97*30mm |
| Package： | 0.23KG 45pcs/11.5KG | 0.23KG 45pcs/11.5KG | 0.23KG 45pcs/11.5KG | 0.23KG 45pcs/11.5KG |
| Warranty： | 3 years | 3 years | 3 years | 3 years |
FAQ ▼
1. What is Mean Well LRS series power supply?
LRS is Mean Well’s economical slim switching power supply. It converts AC to DC for LED strips and industrial equipment.
2. What are common output specs of LRS series?
Available output voltages: 5V, 12V, 24V, 48V. Power ranges from 35W to 75W, widely used in LED lighting projects.
3. What is IP rating and working environment for LRS?
Metal housing with IP20 rating. Only for dry indoor use. Not suitable for outdoor wet or rainy sites.
4. Can LRS run at full load continuously?
We recommend reserving 20% load margin. Continuous full-load operation is not advised to extend lifespan and reduce failure risk.
5. Does LRS support dimming?
Standard LRS is constant voltage without built-in dimming function. An external dimmer controller is required for dimming.
