IP67 Water-proof 5-in-1

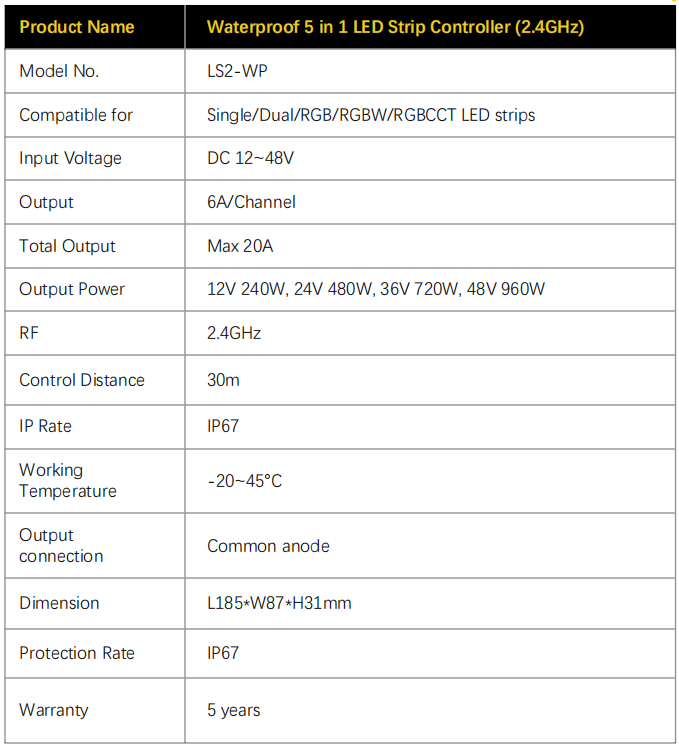

Technical Data ▼

FAQ ▼

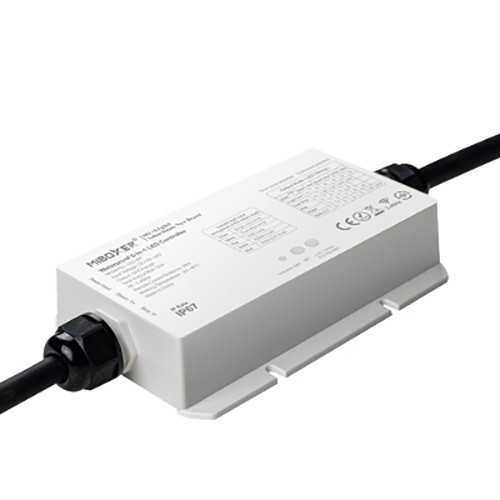

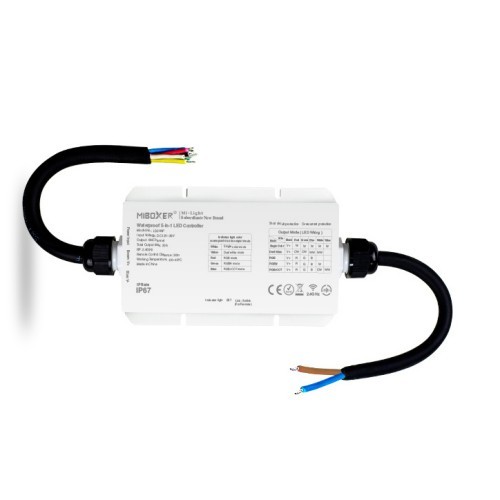

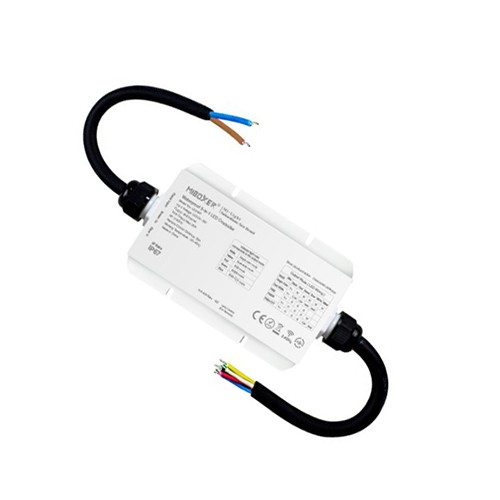

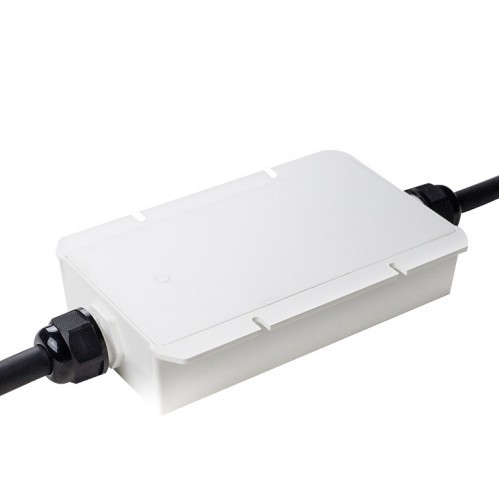

1. What is the model of this Miboxer waterproof 5-in-1 LED controller and which strips does it support?

Model LS2-WP. It is compatible with single color, dual white, RGB, RGBW and RGBCCT LED strips.

2. What is input voltage and load capacity?

Input DC 12–48V. 6A per channel, max total output 20A.

Output power: 12V 240W, 24V 480W, 36V 720W, 48V 960W.

3. Wireless type, control distance and IP rating?

2.4GHz RF wireless control.

Control distance up to 30 meters in barrier-free space. IP67 waterproof rating.

4. Output connection type and working temperature range?

Common anode output connection. Working temperature: -20℃ ~ 45℃.

5. What is the warranty and application scenario?

5-year warranty. With IP67 waterproof, it is suitable for outdoor landscape,

signboards and other wet environment LED strip projects.
