3-in-1 Mini SPI (2.4GHz)

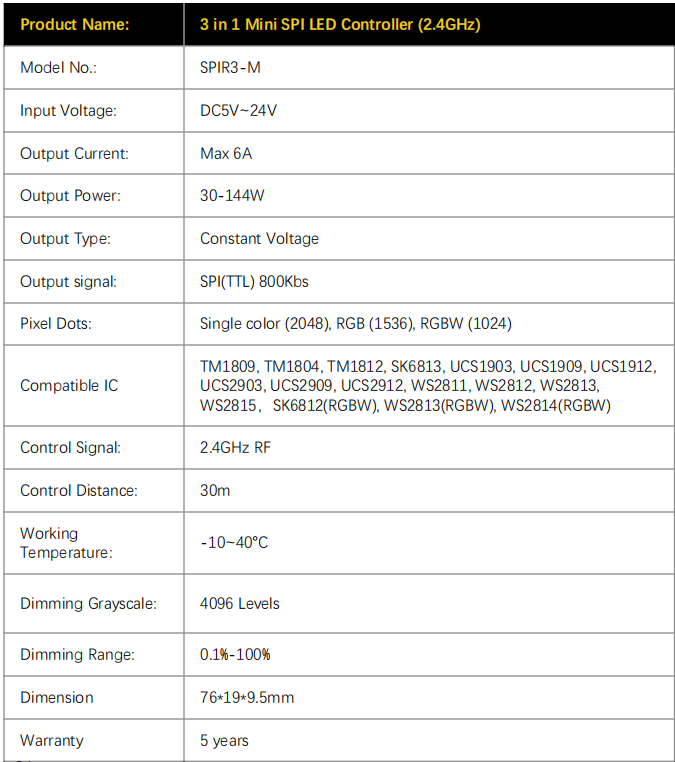

Technical Data ▼

FAQ ▼

1. What is the model of this controller and which modes does it support?

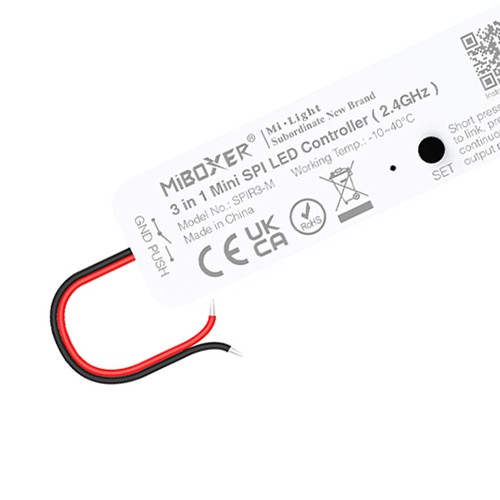

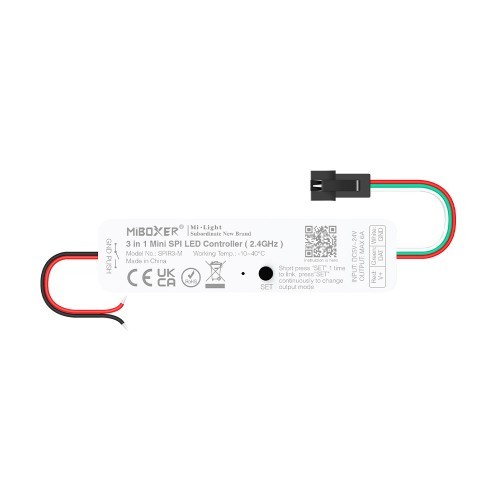

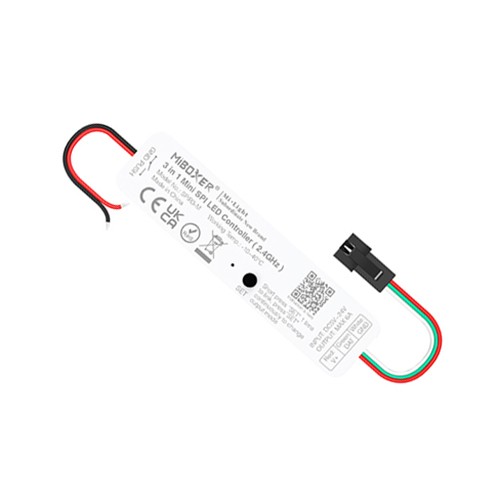

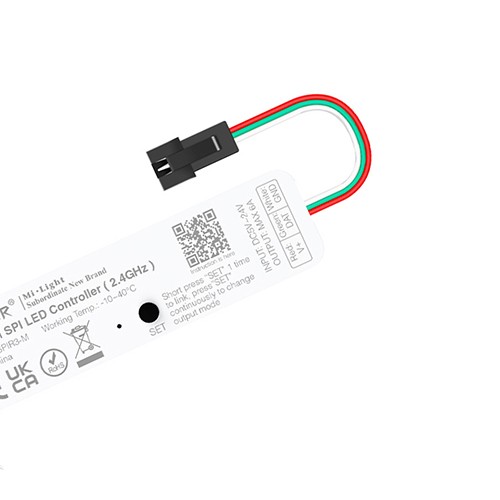

Model SPIR3-M.

It is a mini 3-in-1 SPI controller supporting single color, RGB and RGBW output modes.

2. What are input voltage and load parameters?

Input DC5V–24V, max output current 6A, output power 30–144W, constant voltage output.

3. What is output signal and compatible IC list?

Output SPI(TTL) 800kbps signal.

It is compatible with TM1809, TM1804, SK6813, UCS series and other pixel ICs.

4. Wireless type, control distance and dimming performance?

2.4GHz RF wireless control.

Control distance up to 30 meters in barrier-free space.

4096 grayscale levels, dimming range 0.1%–100%.

5. Dimension, working temperature, optional accessories and warranty?

Dimension 76×19×9.5mm with compact size.

Working temperature: -10℃~40℃.

Optional remote controls C6 and B6. 5-year warranty.
