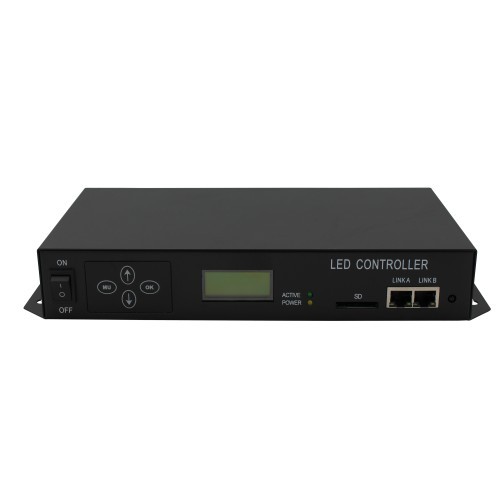

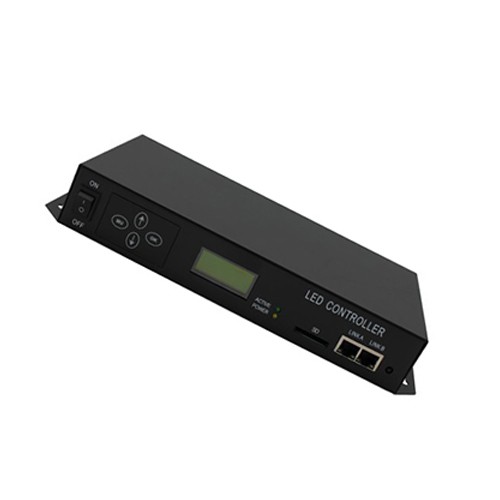

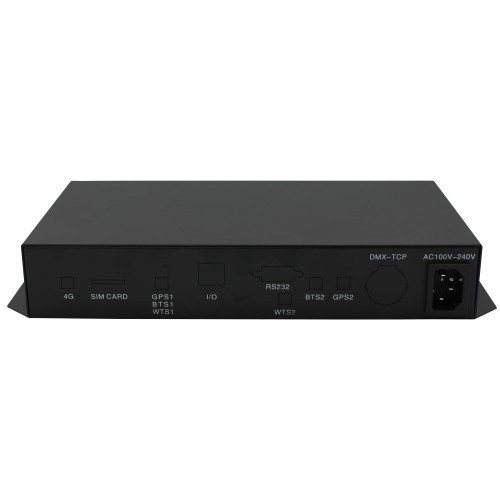

Standard DMX Master Controller

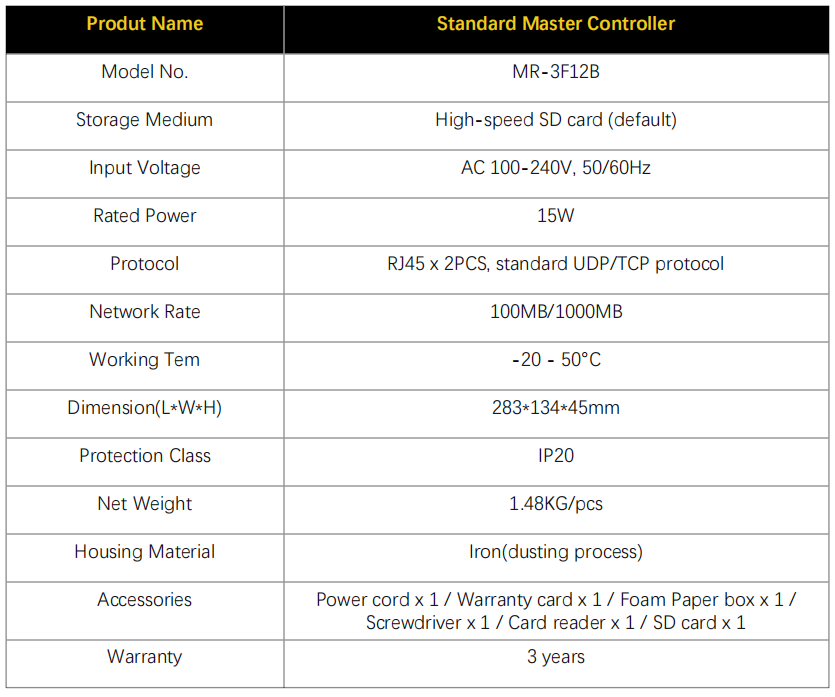

Technical Data ▼

FAQ ▼

1. What is the model of this master controller and what working modes are supported?

Model MR-3F12B. It supports online/offline integrated mode.

 It can run offline via SD card or work with online network control.

2. What is the power supply specification and rated power?

Input AC 100-240V, 50/60Hz, rated power 15W.

3. What are the network port and communication protocol?

It has 2 pieces of RJ45 ports, adopts standard UDP/TCP protocol, network speed 100MB/1000MB.

4. What is protection class, working temperature and housing material?

IP20 protection class. Working temperature: -20℃~50℃. Housing is iron with dusting process.

5. What is the warranty and included accessories?

3-year warranty.

Accessories include power cord, warranty card, foam box, screwdriver, card reader and SD card.
