8-Port DMX Sub-Controller

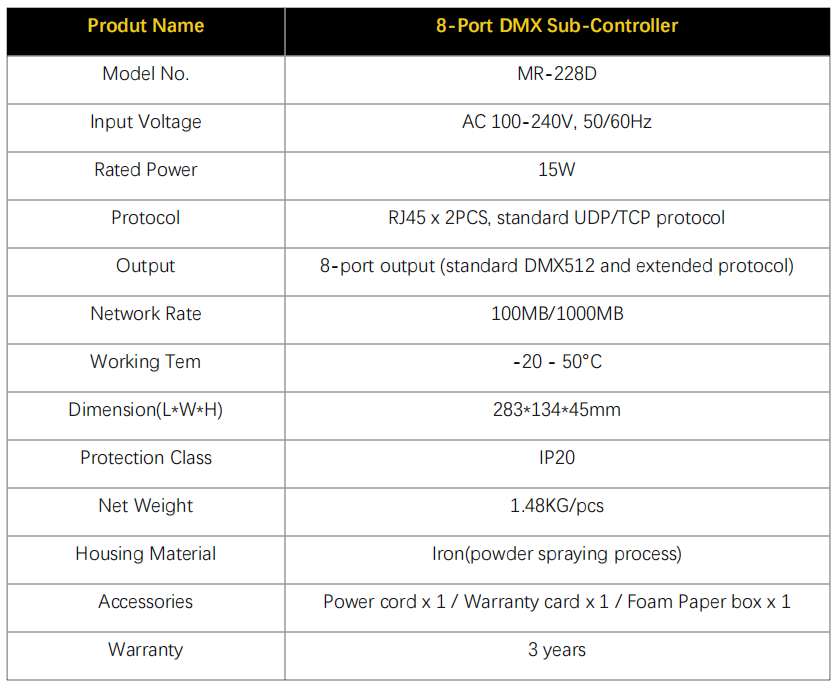

Technical Data ▼

FAQ ▼

1. What is the model of this 8-Port DMX Sub-Controller and what operating modes are supported?

Model MR-228D.

It supports online/offline integrated mode, as well as synchronous and asynchronous control modes.

2. What is the power supply specification and rated power?

Input AC 100-240V, 50/60Hz, rated power 15W.

3. What are the features of network and output ports?

It has 2 RJ45 ports with standard UDP/TCP protocol.

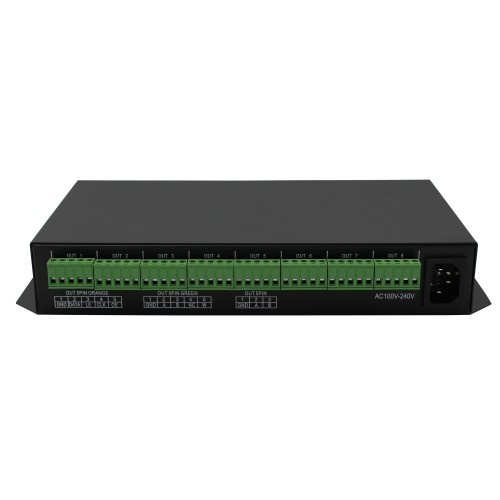

8-port output supports standard DMX512 and extended protocol, network speed 100MB/1000MB.

4. What is protection class, working temperature and housing material?

IP20 protection class. Working temperature: -20℃~50℃. Housing is iron with powder spraying process.

5. What is the warranty and included accessories?

3-year warranty. Accessories include power cord, warranty card and foam paper box
