Co-extruded Neon-NLxxxxJT

Technical Data ▼

Product Feature ▼

* High light transmittance, environmental friendly and food grade silicone material

* Co-extrusion technology greatly enhance the performance and life span

* 120° viewing angle

* Low voltage input DC 12V or 24V or 48V, safety operation

* High performance homogeneous, real non-dot uniform lighting effect

* Excellent flexibility for vetical bendable shapes

* Low power consumption for energy saving

* IP67 water-proof, ideal for indoor and outdoor use

* High-end neon light, 5 years warranty

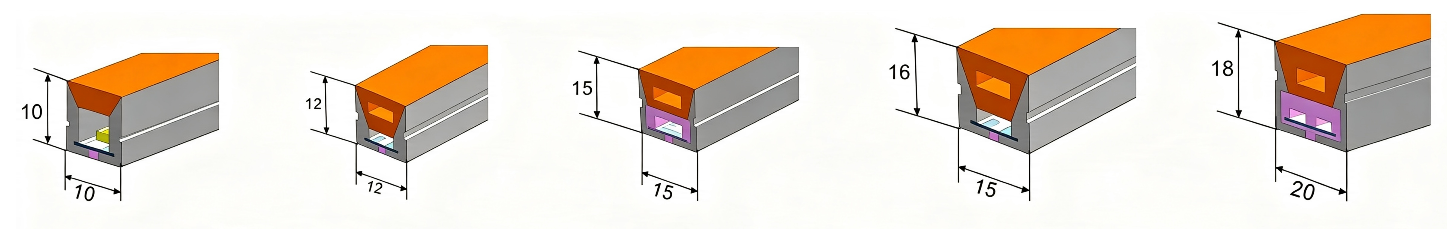

Product Dimension ▼

End Cap Options ▼

Mounted Accessories ▼

Applications ▼

Factory Display ▼

FAQ ▼

1. What is the biggest process difference between extruded neon and sleeve neon?

Sleeve neon is manually assembled by inserting LED strips into silicone tubes.

The strip and tube are separated with gaps, and the inner strip can move freely.

Extruded neon is one-piece co-extruded molding.

PCB, LEDs and silicone shell are fully integrated under high temperature and high pressure.

Zero gap, no loose structure, more precise and stable craftsmanship.

2. Which one has better bending resistance?

Extruded neon has far better bending performance.

The integrated structure ensures uniform soft and hard texture.

It can be bent, twisted and shaped repeatedly without cracking, hollowing or loosening.

Sleeve neon will cause internal strip displacement and hollow gaps after bending.

Frequent bending easily leads to light shadow faults and internal stuck problems.

3. Which one is more stable for long-term use?

Extruded neon is much more stable.

The integrated structure has no gaps or movement.

No strip shifting, no deviation, no abnormal lighting issues after long-term operation.

Sleeve neon has inherent internal gaps.

After long-term vibration and thermal expansion, the inner strip easily shifts, resulting in uneven brightness and poor stability.

4. Is there a big difference in waterproof and moisture-proof performance?

Yes, the difference is obvious.

Extruded neon features seamless integrated sealing. No moisture or vapor can penetrate inside.

Sleeve neon has tiny gaps between tube and strip.

In high humidity, outdoor or underwater environments, it is easy to absorb moisture, fog inside and cause LED oxidation.

5. Which one has better heat dissipation and longer lifespan?

Extruded neon dissipates heat evenly and lasts longer.

Zero-distance fitting between silicone and PCB ensures fast and balanced heat conduction, no heat accumulation during long-time high-temperature working.

The air gap inside sleeve neon blocks heat dissipation. Long-term heat accumulation accelerates light decay and shortens service life.

6. Which one provides better and more uniform lighting effect?

Extruded neon delivers softer, uniform lighting with no spots, no particle vision and no brightness difference.

Full-body luminous consistency is perfect.

Sleeve neon easily causes strip offset after installation and bending, resulting in uneven brightness, shadow and poor visual effect.

7. Which one has better aging resistance and weather resistance for engineering projects?

Extruded neon has superior anti-aging and weather resistance.

High-pressure one-piece co-extrusion prevents delamination forever.

UV-resistant, hydrolysis-resistant and temperature-resistant.

No yellowing or cracking after long-term outdoor, water and sauna environment use.

Sleeve neon is prone to delamination, hollowing and peeling.

It ages much faster in outdoor harsh environments.

8. Comparison of failure rate and maintenance rate?

Extruded neon has ultra-low failure rate and maintenance-free performance.

No loosening, no water penetration, almost zero after-sales problems for engineering projects.

Manual-assembled sleeve neon has higher process errors.

It easily causes poor contact, flickering and internal fogging after long-term use.

9. Why is extruded neon more suitable for formal engineering projects?

Extruded neon has comprehensive advantages:

super bending resistance, stable structure, no delamination, no water leakage, low light decay, long lifespan and zero rework rate.

It is perfect for high-end decoration, outdoor lighting, swimming pool water scenery, sauna high temperature & humidity environment,

and long warranty engineering projects.

Sleeve neon is only suitable for temporary use, not for high-standard long-term engineering projects.
