ELEMENT Series（30W-250W)

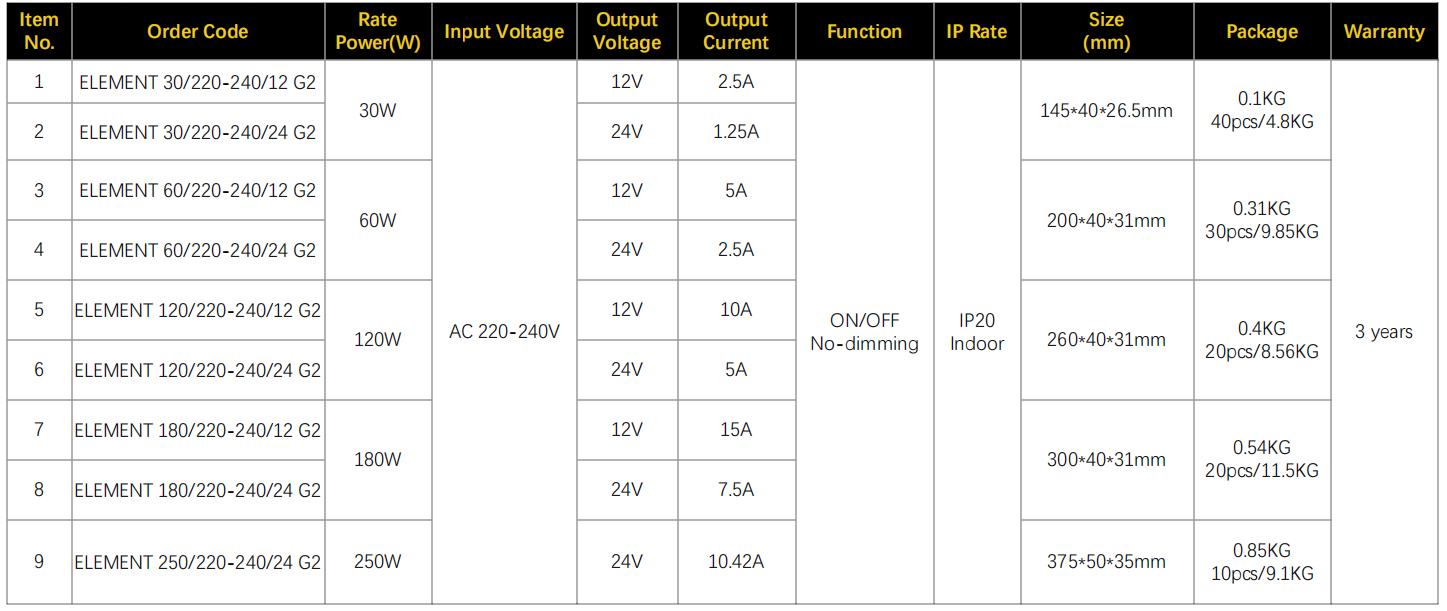

Technical Data ▼

FAQ ▼

1. What is Osram ELEMENT series LED driver?

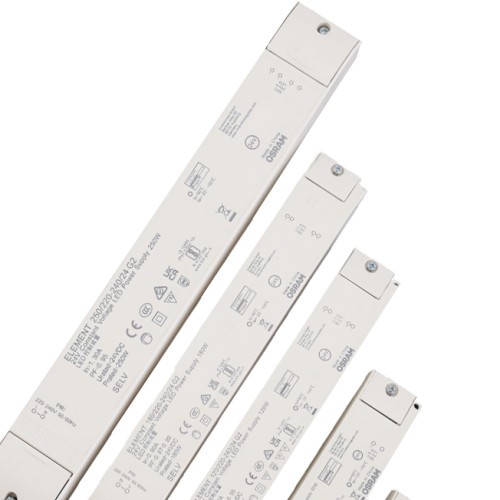

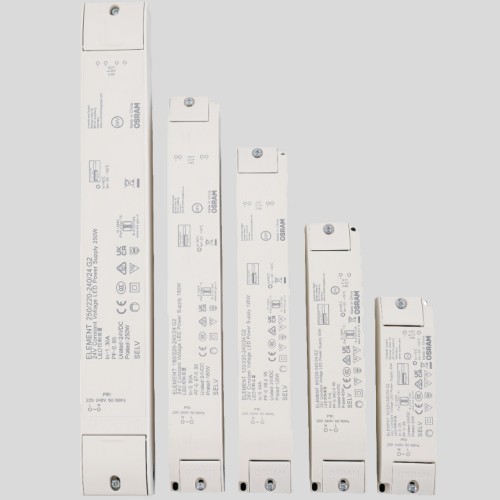

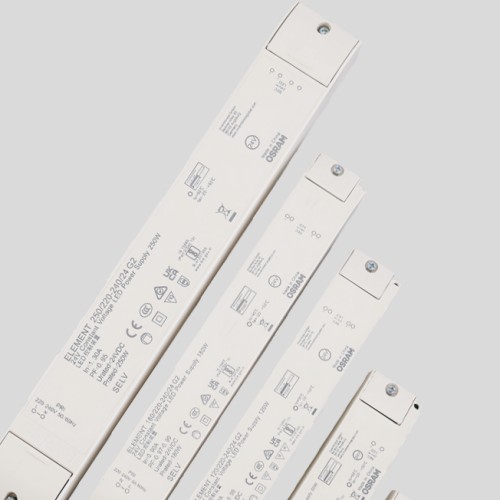

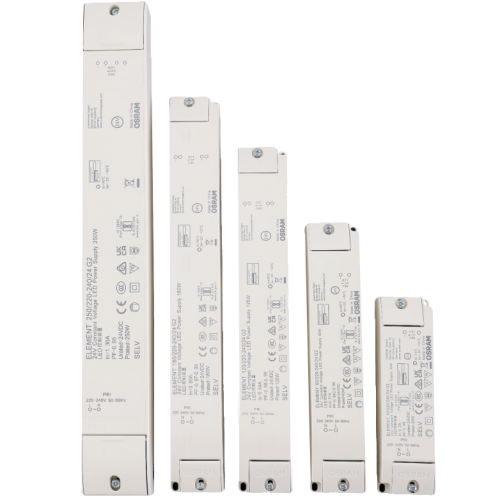

ELEMENT is Osram compact indoor LED driver, available in constant voltage and constant current versions.

It converts AC to DC for indoor LED strips, linear lights, cabinet lights and panel lights.

2. What are the power range and input specs of ELEMENT?

Main power range 30W~250W, AC input 220–240V.

Constant voltage models have 12V/24V output.

Constant current versions support output current adjustment via dip switch.

3. What is IP rating and application environment for ELEMENT?

IP20 rated. Only for dry indoor use. Not suitable for outdoor wet or rainy conditions.

4. Can ELEMENT run continuously at full load?

We recommend a 20% load margin.

Continuous full-load operation is not advised to reduce heat and extend service life.

5. Does ELEMENT series support dimming?

Basic ON/OFF models only support power on/off with no dimming.

Selected versions support 0-10V or DALI dimming.

Please check model suffix during selection.
