DC Power Plug

Technical Data ▼

Detail Display ▼

FAQ ▼

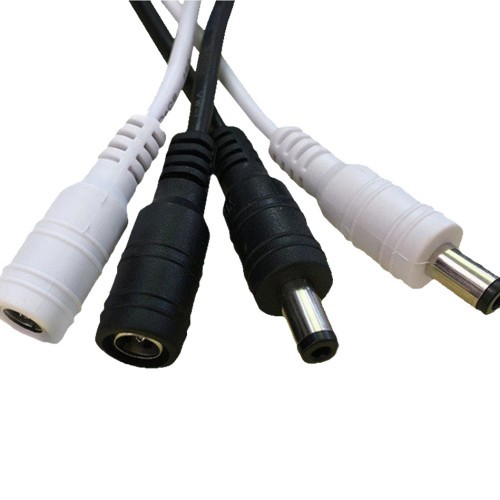

1. What specification is this series of DC connectors?

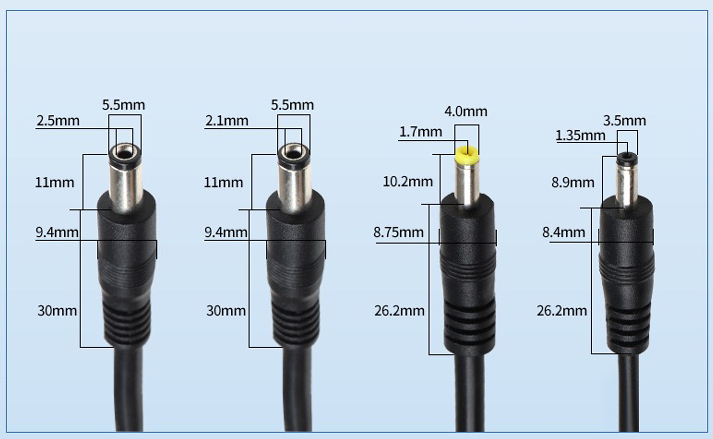

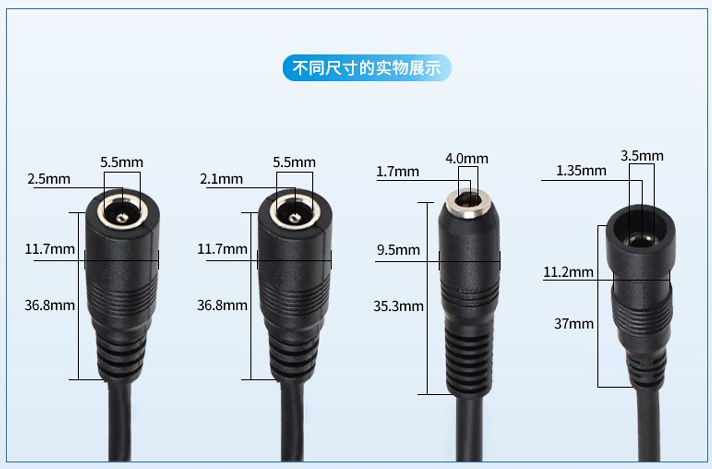

All adopt standard 5521 DC size (OD 5.5mm, ID 2.1mm).

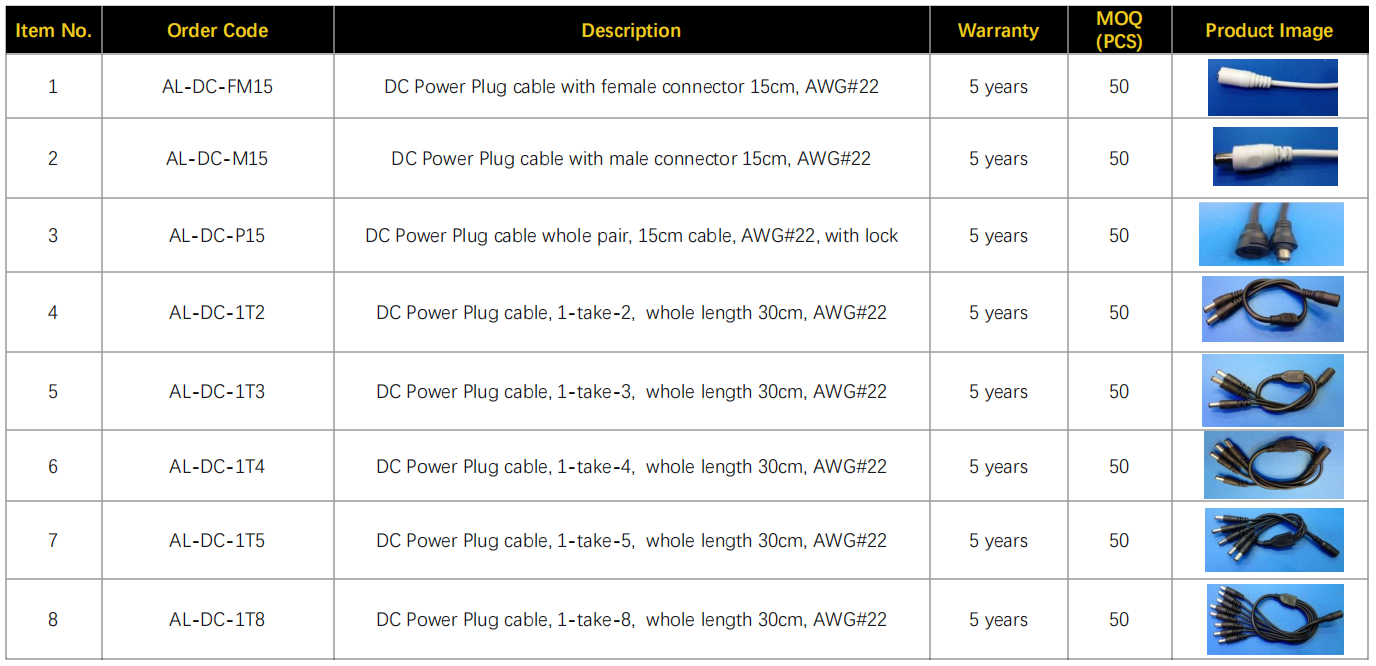

The series includes basic DC connectors,

twist-lock DC connectors and multi-output DC split cables for 12V/24V low-voltage power connection.

2. What is the wire material and performance?

Tinned copper conductors with premium PVC insulation,

flexible and fold-resistant, rated 300V and 80℃ temperature resistance.

For multi-split cables, main wire is 20AWG and branch wires are 22AWG for stable conductivity.

3. What is the function of the lock structure and what is the IP rating?

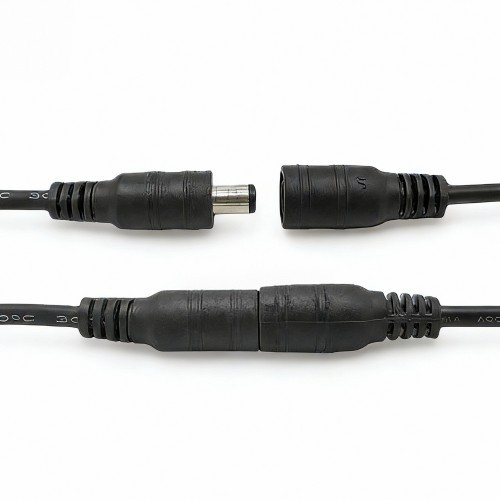

The twist-lock design prevents accidental pull-out. Rotate to unlock before disconnection.

All items are IP20 rated, dustproof only, not waterproof. Extra waterproof protection is required for outdoor installation.

4. Is customization available?

Standard moulds, no new mould development supported.

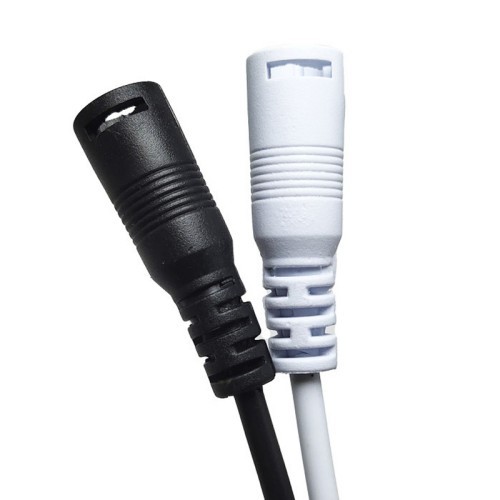

Male / female connectors are optional. For multi-split cables,

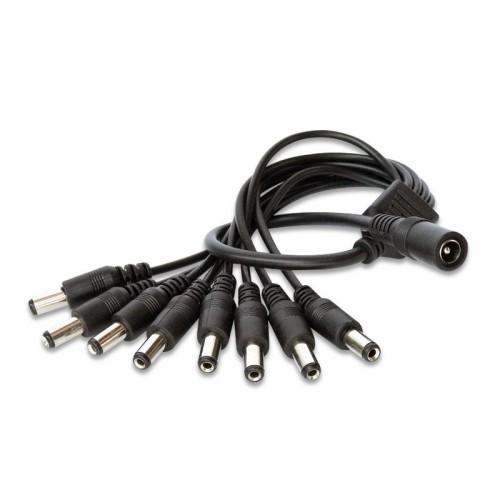

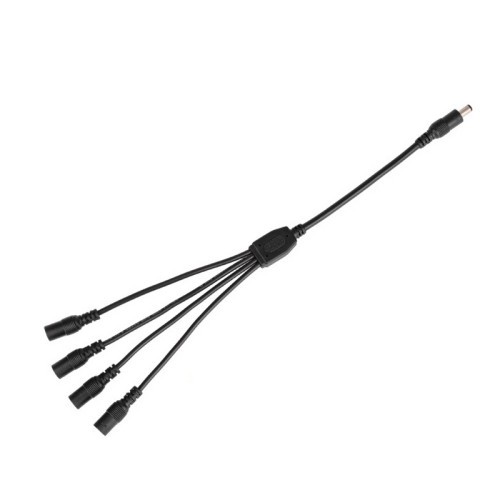

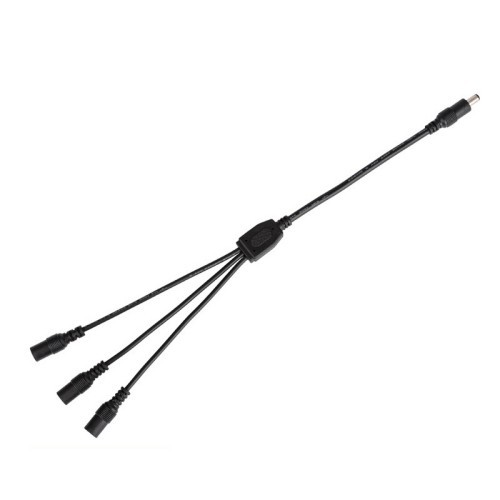

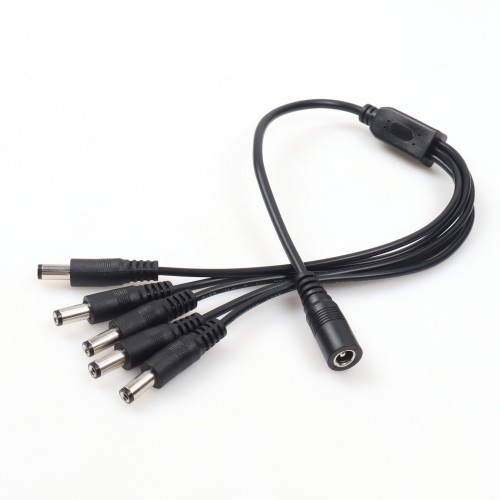

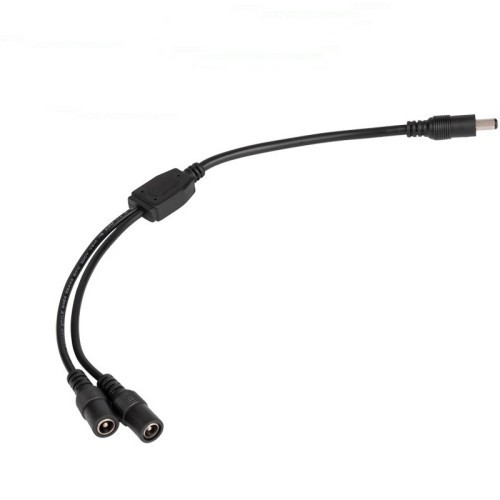

wire length, wire gauge and 1-to-2 up to 1-to-8 branches can be customized.

5. What are the application scenarios?

Suitable for 12V/24V low voltage devices:

LED strips, cabinet lights, sign & landscape lighting, low-voltage lighting modules and CCTV.

Twist-lock version is recommended for vibrating environments.

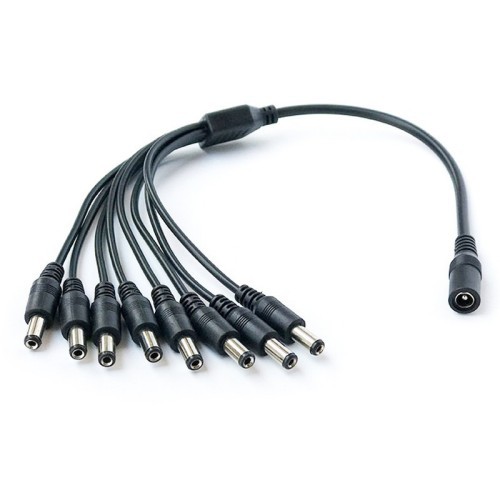

Multi-split cables are used for multi-channel power supply from one single power source.
