Order Code: AL-SP5032-2

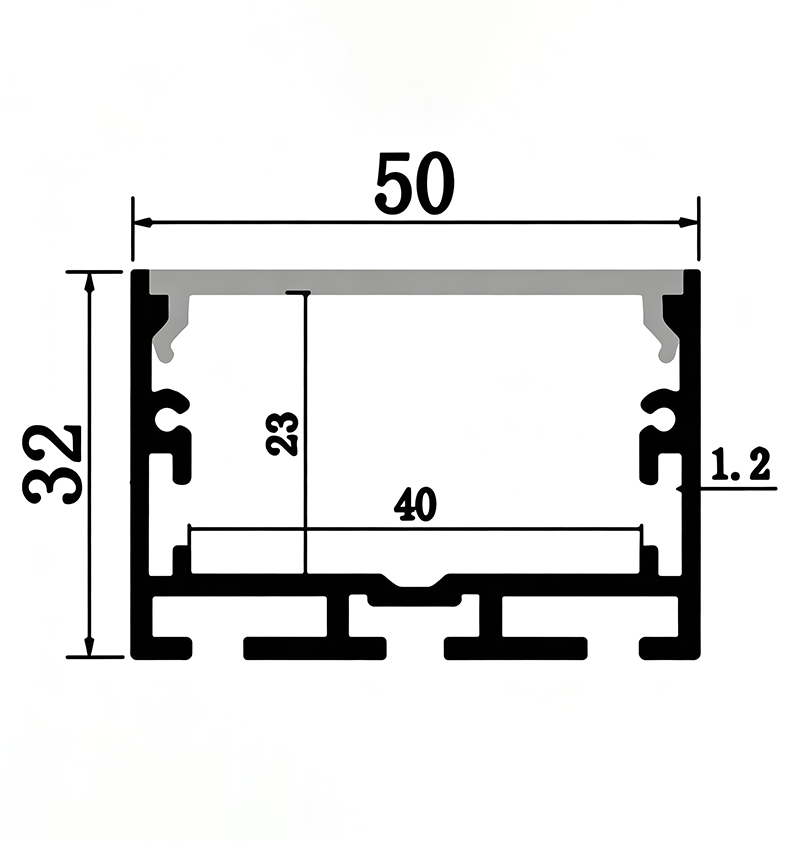

Product Size: W50*H32
Aluminum Material: 6063-T5 Aluminum Alloy
PC cover: Opal/Diffuser/Transparent
Length: 1m to 3m optional. Default 1m, Max. 3m
Default Accessories: End caps+ Mounting clip+Suspended rope
LED strip light width: ≤40mm
Finished Color: Silver/White/Black
Technical Data ▼
| Order Code | AL-SP5032-2 |
| Product Size | W50*H32(mm) | |
| Aluminum Material | 6063-T5 Aluminum Alloy | |
| PC cover | Opal/Diffuser/Transparent | |
| Optional Length | 0.5m to 3m optional. Default 1m, Max. 3m | |
| Default Accessories | End caps+ Mounting clip+Susepended rope | |
| LED strip light width | ≤40mm | |
| Finished Color | Silver/White/Black |
Detail Display▼
FAQ ▼

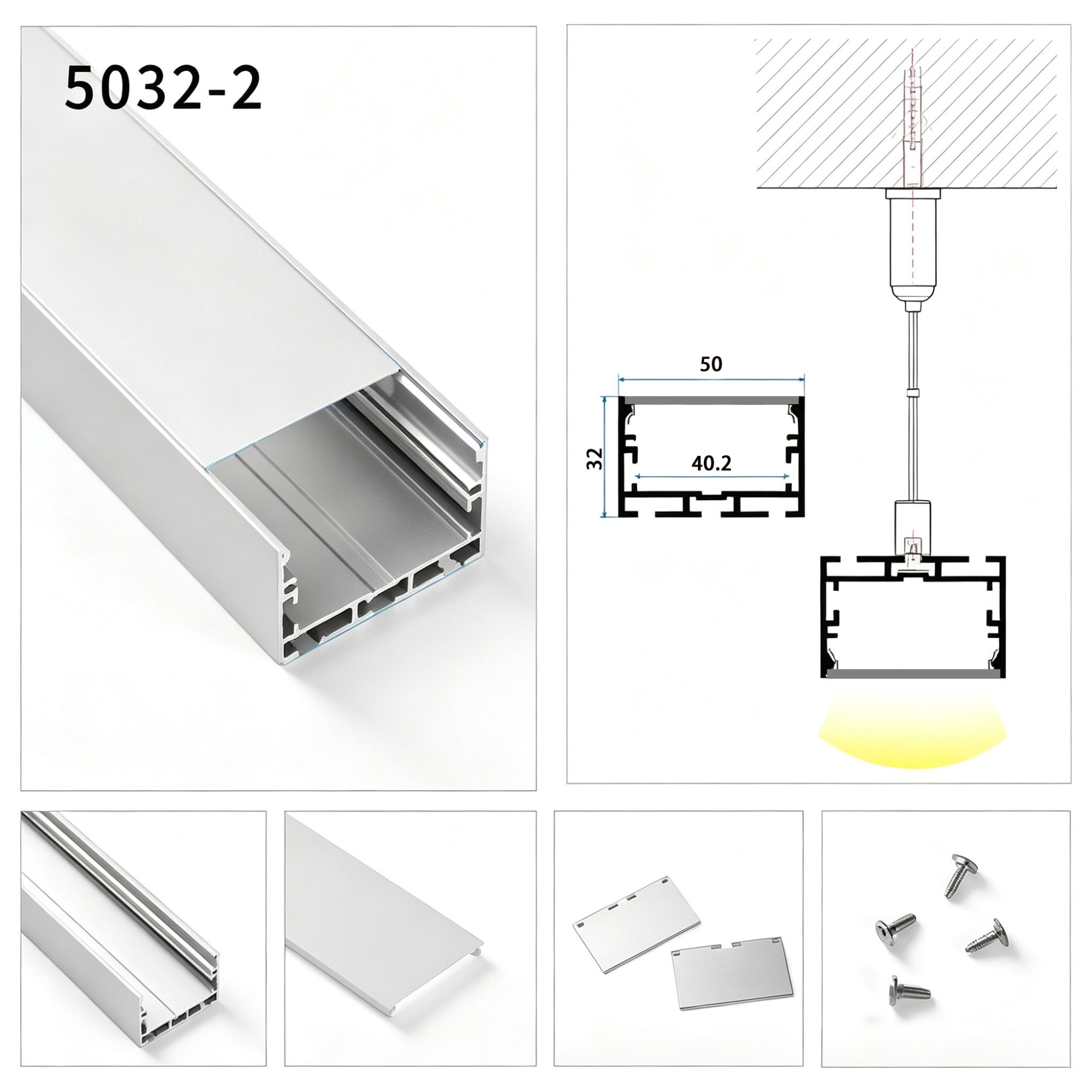

1. What is suspended aluminum profile?
Hung by cables & brackets under ceiling.
Single-side or double-side lighting optional for suspended linear lights.
2. Application scenarios?
Mall atriums, offices, showrooms, restaurants and high-ceiling spaces for ambient suspended lighting.
3. Load requirement?
Fix hanging parts on load-bearing slab instead of gypsum board.
Add more hangers for long heavy profiles for safety.
4. Can it be double-sided luminous?
Yes. Some models light downward and wash ceiling upward to enrich space layers.
Single-sided version lights downward only.
5. IP rating & outdoor use?
Standard is IP20 indoor.
Custom sealed version reaches IP65/IP67 for outdoor, hanging points need anti-rust treatment.
